Usp Structural Connectors

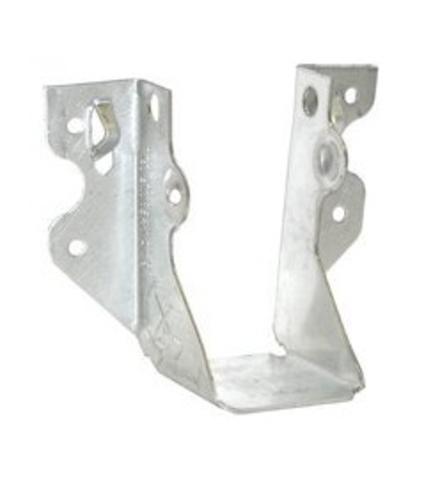

USP Structural Connectors JUS28-3TZ Joist Hanger Slant Nail, 2" x 8"
Item # 11870142Mfr # JUS28-3TZUPC 081942113010
$9.79
Product Overview
Double shear nailing for fewer nails and faster installation. Dimples allow for 30 to 45 degree nailing through joist into header, resulting in higher loads and less nailing, and eliminate need for shorter joist nails in 2x applications. Meets ICC-ES ESR-1881, FL821, L.A. City RR25779, Dade County, FL 11-0510.01 and 07-0419.01codes.
Highlights:
Specifications
- Type
- Double shear, slant
- Size
- 2" x 8"
- Style
- Face mount
- Length
- 6-3/8"
- Thickness
- 18 gauge
- Load capacity
- 1290 lb
- Skew angle range
- 30-45 degree
- Material
- Steel
- Carrying member fastener type
- (6) 16d Nail
- Carried member fastener type
- (4) 16d Nail
- Finish
- Triple zinc plated
- Width
- 4-5/8"
- Height
- 2"
- Brand
- Usp Structural Connectors
- Mfr number
- JUS28-3TZ
- Item number
- 11870142
- UPC
- 081942113010
