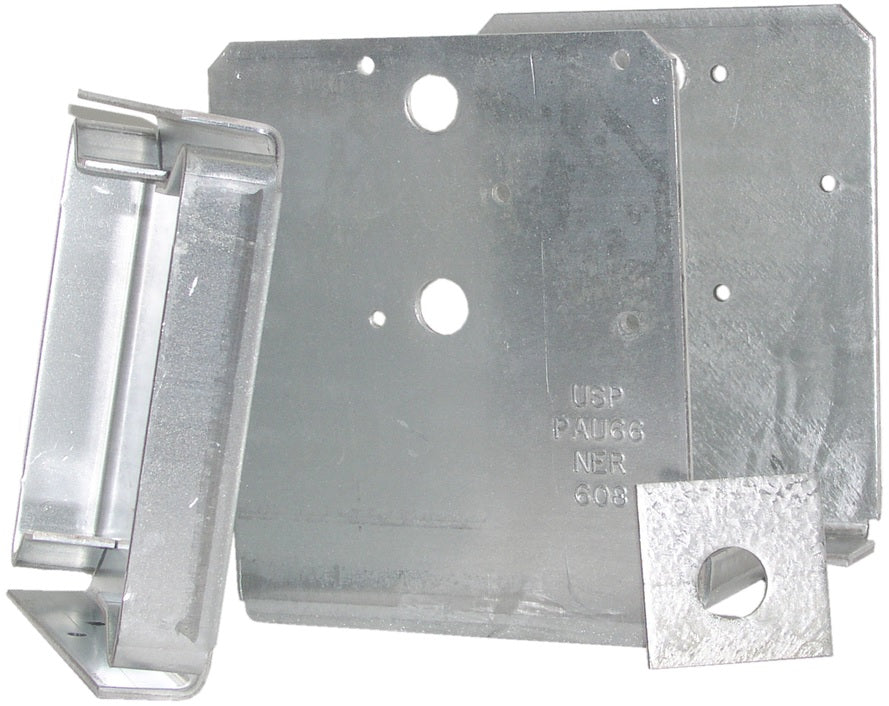

USP Lumber PAU66-TZ Post Anchor, 6" x 6"
USP Lumber PAU66-TZ Post Anchor, 6" x 6"
$44.50
SKU: 12184512
MFG: PAU66-TZ
Description
Highlights:
- Features a 1" stand-off plate to evaluate wood posts above concrete surfaces
- Drain slots allow the anchors to shed water
- Triple zinc finish for ACQ pressure treated lumber
- Not for fence posts or other unrestrained (not fixed or fastened at top) applications
- Not designed to resist overturning (moment) loads
- Requires (12) 16d HDG nails or (2) 1/2" HDG bolts and (1) 5/8" anchor bolt for installation
- Meets ICC-ES ESR-1881, FL821, L.A. City RR 25779 and Dade County, FL 07-0306.06, PAU44-TZ and PAU66-TZ codes
Specifications:
- Finish: Triple Zinc Plated
- Material: Steel
- Series: PAU
- Size: 6" x 6"
- Length: 5"
- Width: 5-1/2"
- Minimum Embedment Depth: 4"
- Fasteners: (1) 5/8" Anchor Bolt, (12) 16d Nail
- Load Capacity: 2380 lb Uplift Douglas Fir
- Strength: 2000 psi
- Edge Distance: 2"
WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Specifications
MFR:
PAU66-TZ
SKU:
12184512
UPC:
081942113133
Brand:
Usp Structural Connectors
Length:
7
Width:
6
Height:
7
Attachment:
