Tell CL100201 Light Duty Commercial Tubular Grade 2 Door Entry Lever
Tell CL100201 Light Duty Commercial Tubular Grade 2 Door Entry Lever
$52.25
SKU: 10885281
MFG: CL100201
Description

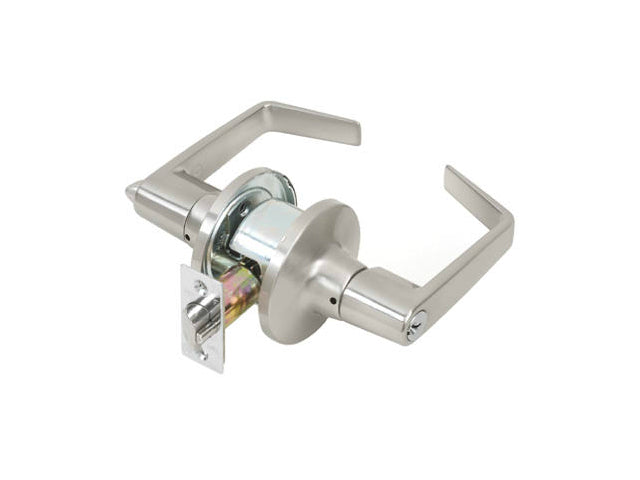

Complies with ANSI A 156.2, series 4000, grade 2, 400,000 cycles. UL listed for 3 hour fire door & ANSI A117.1 american disabilities act. Tubular steel chassis, coated with zinc dichromate corrosion resistance. Lever is non-handed & solid cast. Latch, 1-1/8" x 2-1/4", square corner faceplate, 1" housing diameter stainless steel, 1/2" throw. Adjustable backset 2-3/4" or 2-3/8", US26D satin chrome finish. 1-1/8" x 2-3/4" x 3/32" T strike. Use of doors 1-3/8" to 1-3/4" thick. Uses 2-1/8" diameter hole for lever & 1" diameter hole for latch bolt, fits standard 161 door prep.
- Entry Lever
- Complies with ANSI A 156.2, series 4000, grade 2, 400,000 cycles
- UL listed for 3 hour fire door & ANSI A117.1 american disabilities act
- Tubular steel chassis, coated with zinc dichromate corrosion resistance
- Lever is non-handed & solid cast
- Latch, 1-1/8" x 2-1/4", square corner faceplate, 1" housing diameter stainless steel, 1/2" throw
- Adjustable backset 2-3/4" or 2-3/8", US26D satin chrome finish
- 1-1/8" x 2-3/4" x 3/32" T strike
- Use of doors 1-3/8" to 1-3/4" thick
- Uses 2-1/8" diameter hole for lever & 1" diameter hole for latch bolt, fits standard 161 door prep.
Specifications
MFR:
CL100201
SKU:
10885281
UPC:
737874228109
Brand:
Tell
Length:
13
Width:
4
Height:
9
