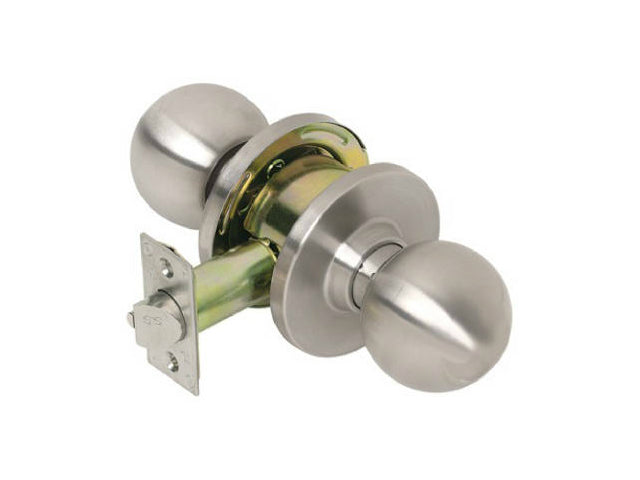

Tell CL100004 Cylindrical Privacy Ball Knob Lock, Stainless Steel, KC2
Description
Latchbolt operated by lever from either side. Outside lever locked by push button on inside. Unlocked by emergency release on outside, rotating inside lever, or closing door.. Heavy-duty cylindrical commercial grade 2 knob, 400,000 cycles, 2-3/4" backset, T strike.
- KC2376 EMP
- Satin stainless steel finish
- Passage ball knob lock
- Heavy-duty cylindrical commercial grade 2 knobsets
- 400,000 cycles, 2-3/4" backset, T strike
- Latchbolt operated by lever from either side
- Outside lever locked by push button on inside
- Unlocked by emergency release on outside, rotating inside lever, or closing door
- UL listed
- Visual pack
Standard Features:
- Performance : Complies with ANSI A156.2, Series 4000, Grade 2, (400,000 cycles), UL/ULC listed for 3 hour fire door
- Chassis : Cylindrical, steel - coated with zinc dichromate (corrosion resistance)
- Latch : 1-1/8" x 2-1/4", square corner faceplate, 1" housing diameter (stainless steel), 1/2" throw
- Rose : 3" diameter
- Backset : 2-3/4"
- Strike : Square corner 1-1/4" x 4-7/8" ANSI ASA Strike
- Standard Cylinder : Standard cylinder Schlage (SCC) - 6-pin solid brass, C keyway, keyed different (KD).
- Keys : Two nickel silver per lock cylinder
- Door Range : 1-3/8" to 1-3/4"
- Door Preparation : 2-1/8" diameter for knob, 1" diameter for latch bolt. Fits standard 161 door prep
Optional Features:
- Backset : 2-3/8"
- Strike : T Strike (1-1/8" x 2-3/4")
Keying Options:
- Tell Cylinder : Restricted Tell keyway cylinder available, optional. Tell keyway cylinder is available only keyed to 6-pin
- Other Cylinder Options : Arrow A (ARA), Corbin 59A1 (C059A1), Corbin 60 (C06), Corbin Russwin L4 (CL4), Kwikset (KW1), Russwin D1 (RD1), Sargent LA (SAL), Schlage E (SCE), Schlage F (SCF), Weiser E (WRE), Yale 8 (YA8), Yale GA (YGA)
All cylinders 6-pin. Can also be pinned 5 pin.
- Keying Options : Grand master key (GMK), construction master key (CMK), master key (MK), keyed different (KD), keyed alike (KA), interchangeable core uncombinated (IC), 0-bitted (0BIT).
