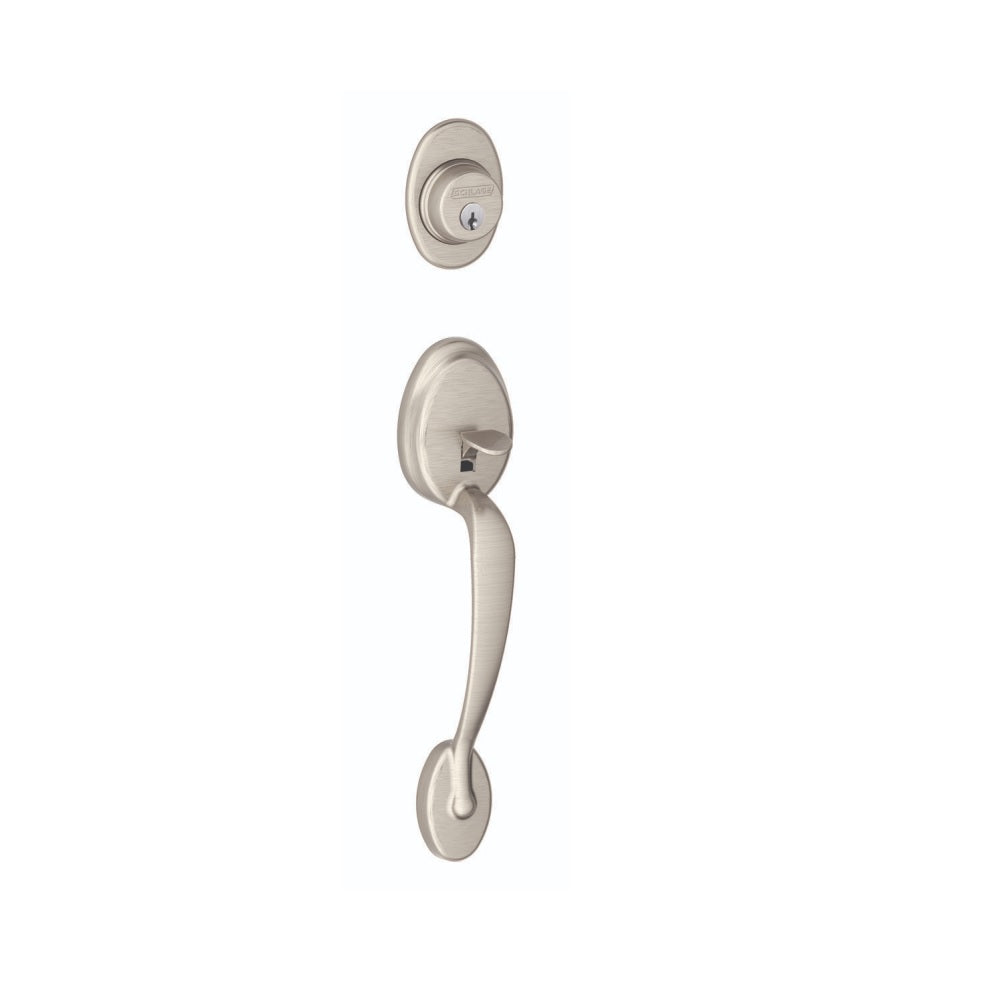

Schlage F58PLY619 Plymouth Exterior Handleset with Deadbolt, Satin Nic
Schlage F58PLY619 Plymouth Exterior Handleset with Deadbolt, Satin Nickel
$112.59
SKU: 12139251
MFG: F58PLY619
Description
Highlights:
- Finish: Satin Nickel
- For residential single and multi-family entrance doors
- Deadbolt thrown or retracted by key from outside or by inside turn unit
- Latch retracted by thumbpiece from inside or outside grip
- Solid forged brass outside trim, wrought brass trim rings with concealed security inserts
- Wrought brass inside trim
- Wrought brass cylinder trim rings reinforced by tapered die cast security insert for resistance to wrenching or prying
- All handlesets have the same finish for both interior and exterior parts except the Bright Brass finish which has a bright brass finish on all interior parts and Ultima Lifetime Anti-Tarnish finish on all exterior parts
- DOOR PREP: 1-1/2" or 2-1/8" deadbolt and 2-1/8" latchbolt Crossbore; 7/8" or 1" Edge Bore; 1" x 2-1/4" Latch Faces; 4" CTC
- DOOR THICKNESS: 1-5/8" to 1-3/4"; packed with extra mounting screws to accommodate 2" doors
- CYLINDER: 5-pin with nickel silver pins and keys (2)
- FACEPLATES: 1" x 2-1/4"
- STRIKES: Deadbolt - 1-1/8" x 2-3/4", square corner, no lip, dust box and door frame reinforcer; Latchbolt - 1-5/8" x 2-1/4" full lip
- BOLT: Maximum Security B300 single cylinder or B362 double cylinder deadbolt with 7/8" housing diameter, 1" throw
- ANSI/BHMA: Grade 1 Security features
- DUAL OPTION UNIVERSAL: Both handleset and deadbolt fit all doors, 2-3/8" or 2-3/4" backset; square corner, round corner, or drive-in preps
WARNING: In accordance with California Prop65 - Warning: Cancer and Reproductive Harm-www.P65Warnings.ca.gov
Specifications
MFR:
F58PLY619
SKU:
12139251
UPC:
043156164226
Brand:
Schlage
Length:
18
Width:
10
Height:
5
Attachment:
