Rain Bird

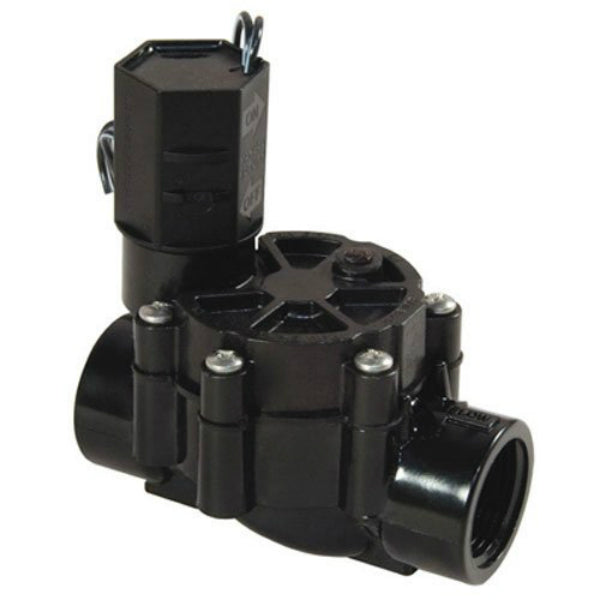

Rain Bird® CP-075 Electric Automatic In-Line Irrigation Valve, 3/4" FPT
Item # 10332226Mfr # CP-075UPC 077985600006
$25.51
Product Overview
Buna-N diaphragm offers superior performance in harsh water environments. Reliable, non-clogging design. Reverse Flow design reduces stress on diaphragm for dependable operation. In-line design minimizes pressure loss of dirt and debris during installation and system start-up.
- 3/4 in. female pipe thread inlet and outlet inline irrigation valve
- Buna-N diaphragm offers superior performance in harsh water environments
- Reliable, non-clogging design
- Reverse Flow design reduces stress on diaphragm for dependable operation
- In-line design minimizes pressure loss of dirt and debris during installation and system start-up
- Operates automatically or manually with manual bleed screw
- Works with any standard sprinkler timer
- Designed for below-ground installation, out of sight and away from playful hands
- Energy efficient, low power encapsulated solenoid with captured plunger.
- Valve Inlet/Outlet Configuration: NPT Female x NPT Female Threaded
Specifications
- Valve Size
- 3/4 in
- Valve Type
- Inline
- Material
- Plastic
- Operating Temperature
- Minimum Water and Ambient Air Temperature: 40° F (4° C), Water temperature: up to 110° F (43° C), Ambient temperature: up to 125° F (52° C)
- Electrical Specifications
- 24 VAC 50/60 Hz solenoid, Inrush: .30 amp, Holding: .19 amp
- Flow Range
- 0.2 to 22 gpm, For flows below 3 GPM or drip line applications install a 200 mesh filter before the valve
- Operating Pressure
- 15 to 150 psi
- Brand
- Rain Bird
- Mfr number
- CP-075
- Item number
- 10332226
- UPC
- 077985600006
