Prime Line
Prime Line D 1511 F-Tab Patio Door Roller Assembly, 1-1/2 Inch
Item # 12601518Mfr # D 1511UPC 049793015112
$12.31
Product Overview

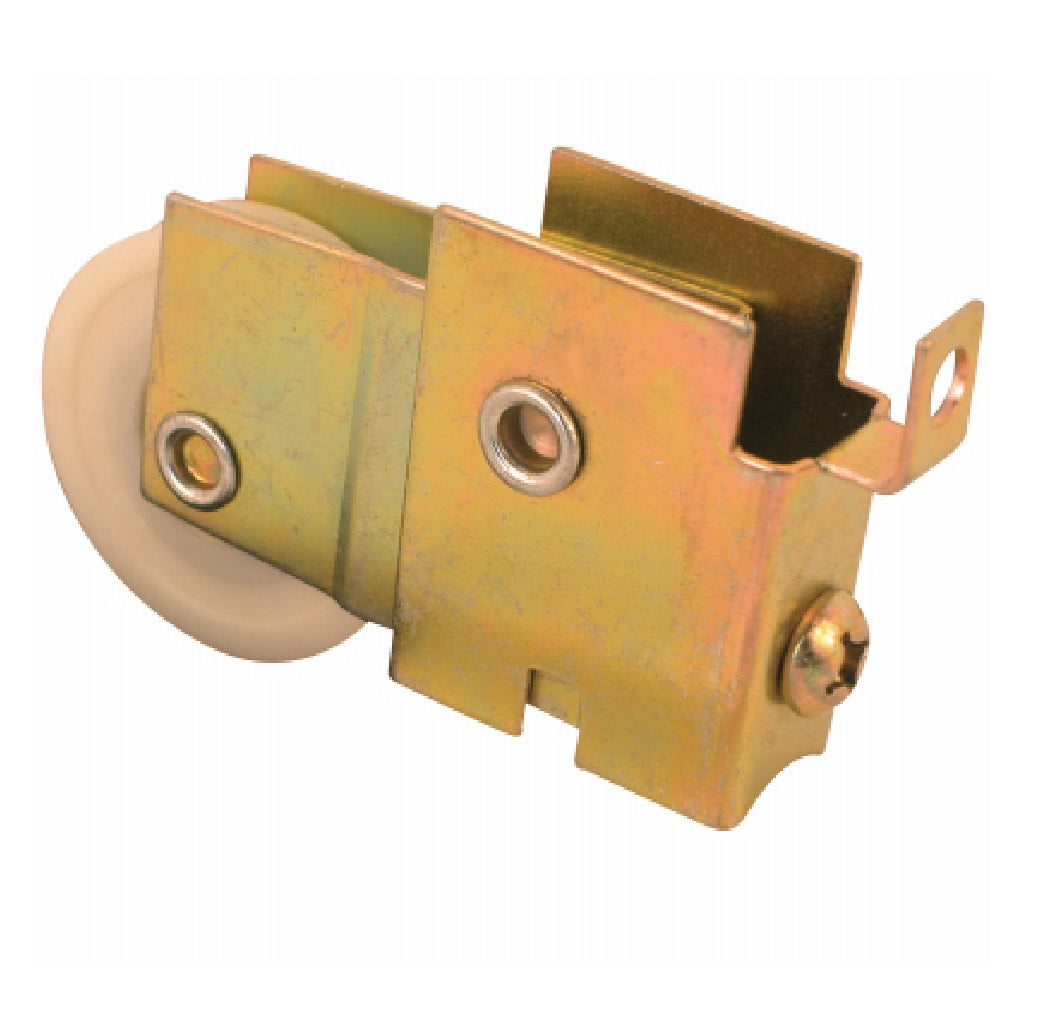

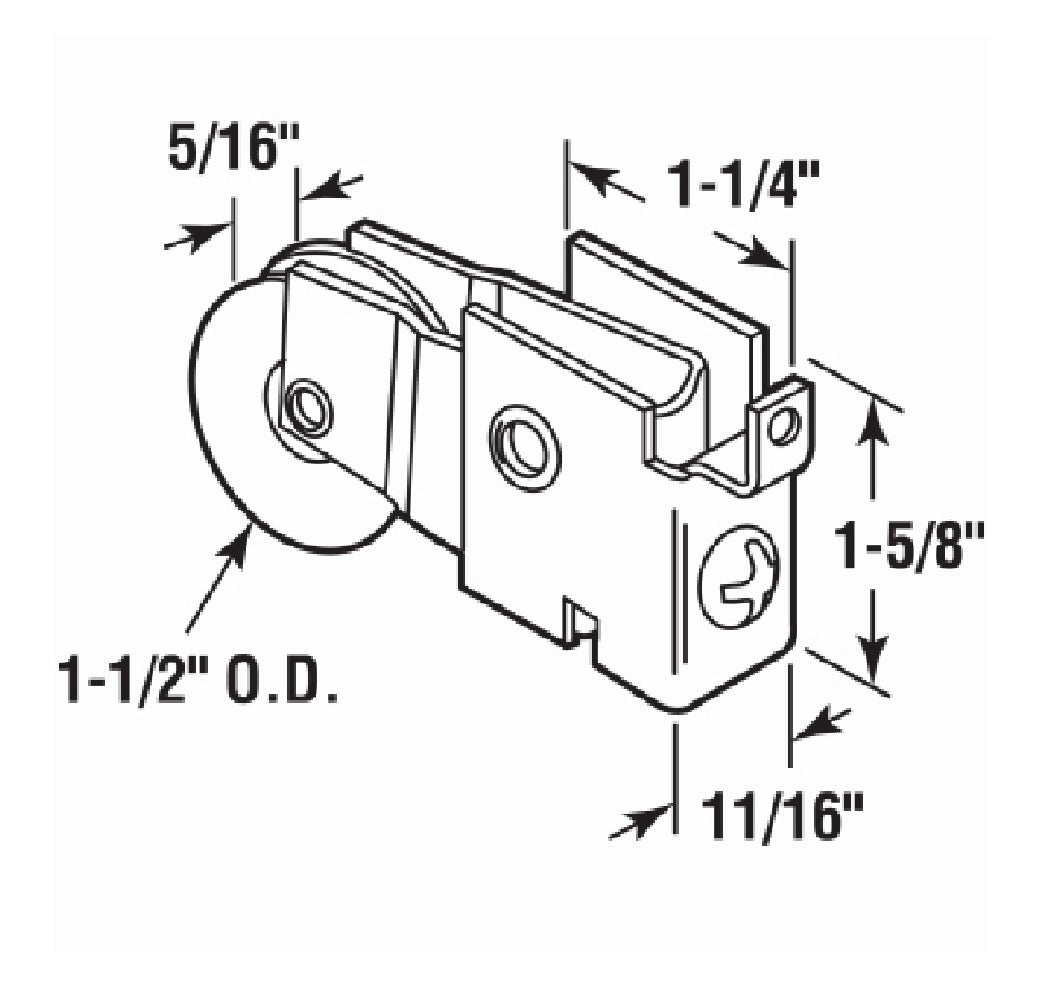

This is a F-tab patio door roller assembly with a 1-1/2 inch concave or grooved nylon ball bearing roller. The housing is 11/16 inch wide and 1-5/8 inch tall with a rear adjusting screw.
Highlights:
- Ball Bearing
- 1-1/2 inch Concave (grooved) Nylon Roller
- F-Tab Housing with Rear Adjust
- Used by Doormaster, Starlite and a variety of other patio door manufacturers
- When the corner screw passes through the F tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together
Specifications
- Roller Material
- Plastic Ball Bearing
- Housing Width
- 11/16 inch
- Roller Width
- 5/16 inch
- Roller Edge Type
- Concave
- Housing Length
- 1-1/4 inch
- Housing Height
- 1-5/8 inch
- Mounting Tab Type
- F-Tab
- Overall Housing Width
- 23/32 inch at Axle
- Brand
- Prime Line
- Mfr number
- D 1511
- Item number
- 12601518
- UPC
- 049793015112
