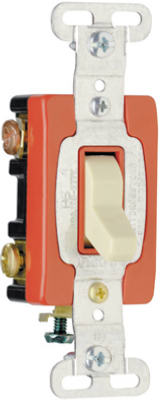

Pass & Seymour Premium 3 Way Toggle Switch, 20A, Ivory

$5.59

Created with Sketch.
Free shipping on order $35+
Created with Sketch.
Usually ships within 24 hours
1

Request a Bulk Quote

Thank you for your quote request. We will be in touch.

SKU: 10054891
MFG: CSB20AC3ICC8

Description

One-piece brass alloy contact arm for reliable electrical performance. One-piece steel strap with integral ground is plated for corrosion resistance. High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse. Heavy-duty toggle bumpers for smooth and quiet operation. Back body made of glass-reinforced nylon. Locking support provides resistance to face and back body separation. Available with side wire or external screw-pressure-plate back and side wire models capable of accepting #14 - #10 AWG copper or copper-clad wire. Cam designed for fast make with positive break action to minimize arcing and prolong switch life. Oversized silver alloy contacts for longer dependable switch life. Tri-drive terminal and mounting screws.

  • 20A
  • 120/277V
  • Ivory
  • Grounding
  • Premium 3 way toggle switch
  • UL, federal specification, CSA
  • Tested to 25000 on/off cycles
  • Screw pressure plate back & side wire termination accepts #14 through #10 Awg stranded & solid copper wire
  • High impact resistant thermoplastic constructions
  • Commercial/specification grade
  • Window box.

Specifications

MFR:
CSB20AC3ICC8
SKU:
10054891
UPC:
785007043983
Brand:
Pass & Seymour
Length:
5
Width:
2
Height:
2
Weight:
1.0 lb
