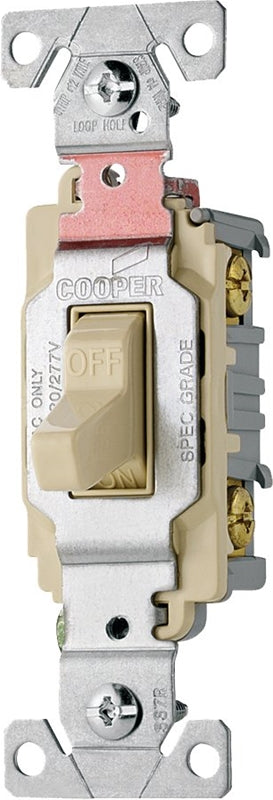

Eaton CS120V Single Pole Switch, 20 A, 120/277 Volt
Eaton CS120V Single Pole Switch, 20 A, 120/277 Volt
$9.75
SKU: 10508626
MFG: CS120V
Description
Side wire terminals accept up to number 10 solid or stranded wire. Rated for fluorescent lighting fixtures typical in commercial applications. 0.050 inch thick steel mounting strap zinc-plated for corrosion resistance. Ground screw terminal standard.
Highlights:
- Color: Ivory
- Length: 1.6 inch
- Width: 1.2 inch
- Action: Cam, Quiet
- Actuator Type: Cam Toggle
- Contact Material: Silver
- Current Rating: 20 A
- Dielectric Strength: 1500 V
- Housing Material: Nylon
- Mounting Type: Wall
- Number of Poles: 1
- Temperature Rating: -20 to 60 degree C
- Terminal Type: Lead Wire
- Voltage Rating: 120/277 Volt
- Wattage Rating: 1 to 2 hp
- Patent pending spring cup toggle design for robust actuation
- Terminals accept up to #10 AWG solid or stranded
- Terminal screws backed out-ready for wiring
- Tri-combo head mounting and terminal screws ease installation
Specifications
MFR:
CS120V
SKU:
10508626
UPC:
032664488184
Brand:
Eaton
Length:
7
Width:
3
Height:
3
