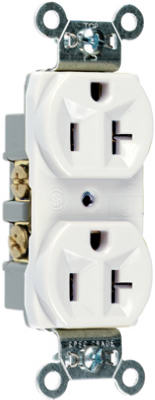

Pass & Seymour Construction Spec Grade Duplex Receptacle, 20A, 125V, White

$9.57

Free shipping on order $35+
Created with Sketch.
Usually ships within 24 hours
1.00000

Request a Bulk Quote

Thank you for your quote request. We will be in touch.

SKU: 10167949
MFG: CRB5362WCC12

Description

Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly. .032 inch thick, brass, triple-wipe power contacts for lasting retention. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. Impact-resistant nylon face and thermoplastic back body. 8 hole internal screw-pressure-plate back wire terminals accept #10 - #14 AWG solid or stranded copper or copper-clad conductors. Terminal compartments isolated from each other for positive conductor containment. Tri-drive terminal and mounting screws. Auto-ground clip assures positive ground.

  • 20A
  • 125V
  • White
  • 2 pole, 3 wire grounding
  • Heavy duty duplex outlet
  • Superior blade retention prevents plugs from falling out
  • Screw pressure plate back & side wire termination accepts #14 through #12 Awg stranded & solid copper wire
  • Auto-ground clip
  • Unbreakable face & back body prevents devices breakage
  • Commercial/specification grade
  • NEMA 5-20R
  • UL, CSA
  • Window box.



Specifications

MFR:
CRB5362WCC12
SKU:
10167949
UPC:
785007857900
Brand:
Pass & Seymour
Length:
7
Width:
3
Height:
2
