National Hardware N325-282 Full Mortise Square Corner Door Hinge, Sati

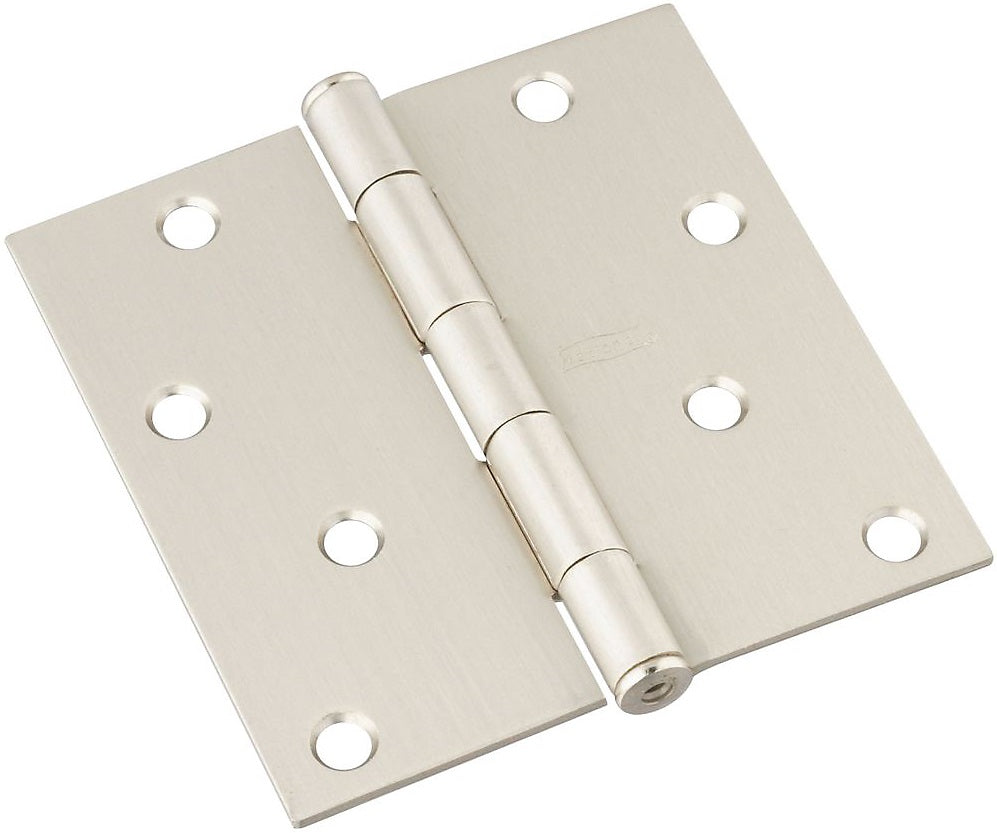

National Hardware N325-282 Full Mortise Square Corner Door Hinge, Satin Nickel
$12.16
SKU: 12097680
MFG: N325-282
Description
Highlights:
- Series: V512
- Finish: Satin Nickel
- Material: Steel
- Hole Diameter: 0.272"
- Leaf Thickness: 0.08"
- Door Leaf Length: 4"
- Frame Leaf Length: 4"
- Diameter Pin: 0.234"
- Overall Width: 4"
- Knuckle Bearing
- 6 Holes
- Removable Pin
- Wall Mounting
- Fasteners: (5) Knuckles, NO #9 Flat Head Screws
- Load Capacity: 55 lbs
- Door Hinge
- Full Mortise
- Square Corner
- Heavy-gauge cold-rolled steel for added strength
- Flush pin for finished appearance
- Five knuckle, full mortise design
- Square corners
- Screw holes are countersunk
- Removable pin for easier installation or removal of doors
Specifications
MFR:
N325-282
SKU:
12097680
UPC:
038613325289
Brand:
National Hardware
Length:
7
Width:
1
Height:
6
