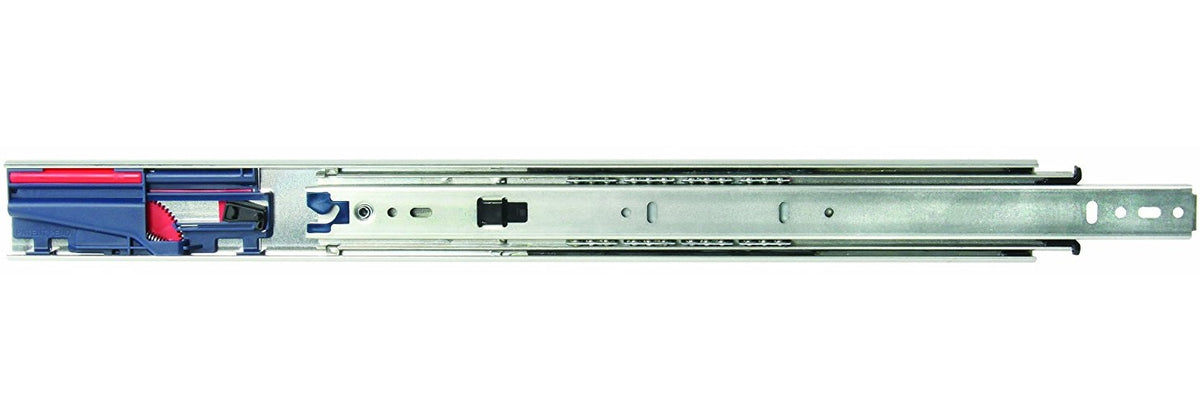

Knape & Vogt 8450FMP 20 Soft-Close Drawer Slide With Screw, 20" L x 24
Knape & Vogt 8450FMP 20 Soft-Close Drawer Slide With Screw, 20" L x 24" W
$34.82
SKU: 12041223
MFG: 8450FMP 20
Description
Highlights:
- Length: 20"
- Height: 1-13/16"
- Width: 24"
- Finish: Anochrome
- Load Capacity: 75 - 120 Lbs
- Bearing Type: Ball
- Mounting Type: Side
- Soft-Close - Full extension
- 100 Pound class load rating
- Designed for use on box drawer applications up to 24" wide where the maximum weight load is not to exceed 100 pounds
- Product features a "soft-close" module that eliminates drawer slamming
- Clearance required: 1/2" plus 1/23" minus 0"
- Patented force management (fm) soft-close mechanism
- 32 mm hole pattern with direct access mounting
- Lever disconnect for easy drawer removal
- Optional rear mount brackets
- Telescopic movement on ball bearings
Specifications
MFR:
8450FMP 20
SKU:
12041223
UPC:
029274316372
Brand:
Knape & Vogt
Length:
22
Width:
5
Height:
5
