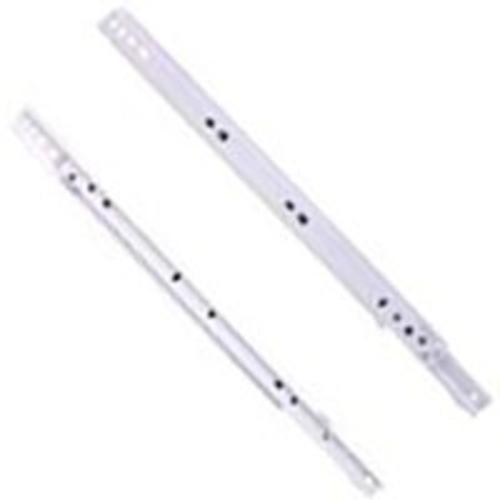

Knape & Vogt 1284PWH500MM White Drawer Slide, 500mm

$11.37

Free shipping on order $35+
1

Request a Bulk Quote

Thank you for your quote request. We will be in touch.
Out of Stock

SKU: 12222582
MFG: 1284PWH500

Description

Medium-duty slide designed for kitchen cabinet and bathroom vanity applications. Adaptable to frame mounting and 32mm mounting system. Solid stud and captive roller reduces side play. Positive stop, lift-out disconnect, stay-closed design. Adjustment slots on both the drawer member and the cabinet member ease installation. Screws fasten to either side or bottom of drawer. Positive lock-out feature is ideal for pull out work surfaces. Height: 1-9/32". Required Clearance: 1/2" plus 1/32" minus 0 each side. 1" between overall drawer side height and cabinet opening height required for drawer insertion and removal. Packaged with screws and installation instructions.

Highlights:

  • Size : 500mm
  • White finish - Poly pack
  • Side Mount - 3/4 Extension
  • 100 Pound Class Load Rating

Specifications

MFR:
1284PWH500
SKU:
12222582
UPC:
029274002527
Brand:
Knape & Vogt
Length:
10
Width:
4
Height:
3
Attachment:
