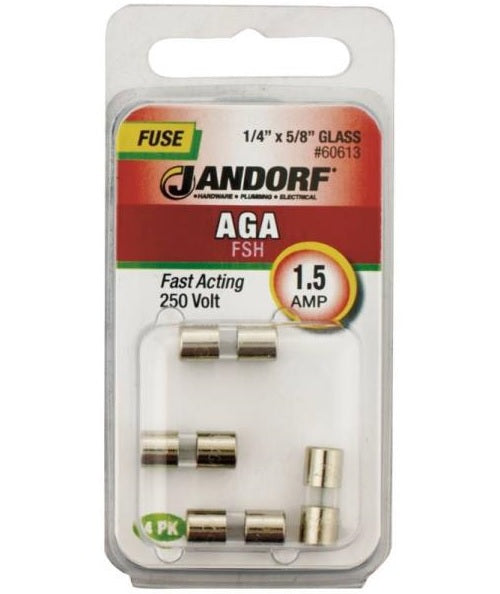

Jandorf 60613 AGA Series Fast-Acting Glass Tube Fuse, 1.5 Amp, 250 Volts

$9.23

Free shipping on order $35+
1

Request a Bulk Quote

Thank you for your quote request. We will be in touch.

SKU: 11879610
MFG: 60613

Description

Highlights:

  • Glass tube: 1/4" x 5/8"
  • Nickel-plated brass end cap construction
  • Nominal resistance : 0.076 ohm
  • Optional axial leaded version available
  • Size rejects insertion of other fuse types
  • Fast acting for maximum protection
  • Card of 4
  • Series: AGA
  • Type: Cartridge
  • Amperage Rating: 1.5 A
  • Voltage: 250 Volts
  • Interrupt Rating: 100 A at 250 VAC, 10 kA at 125 VAC
  • Response Time: 4 hr at 100%, 60 min at 135%, 120 sec at 200%
  • Terminal: Ferrule
  • Body Style: Non-Rejection Cylindrical
  • Element: Single
  • Material: Glass Tube
  • Diameter: 1/4"
  • Length: 5/8"
  • Standards: CE Certified, UL Listed
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65Warnings.ca.gov

Specifications

MFR:
60613
SKU:
11879610
UPC:
740265606134
Brand:
Jandorf
Length:
4
Width:
2
Height:
3
