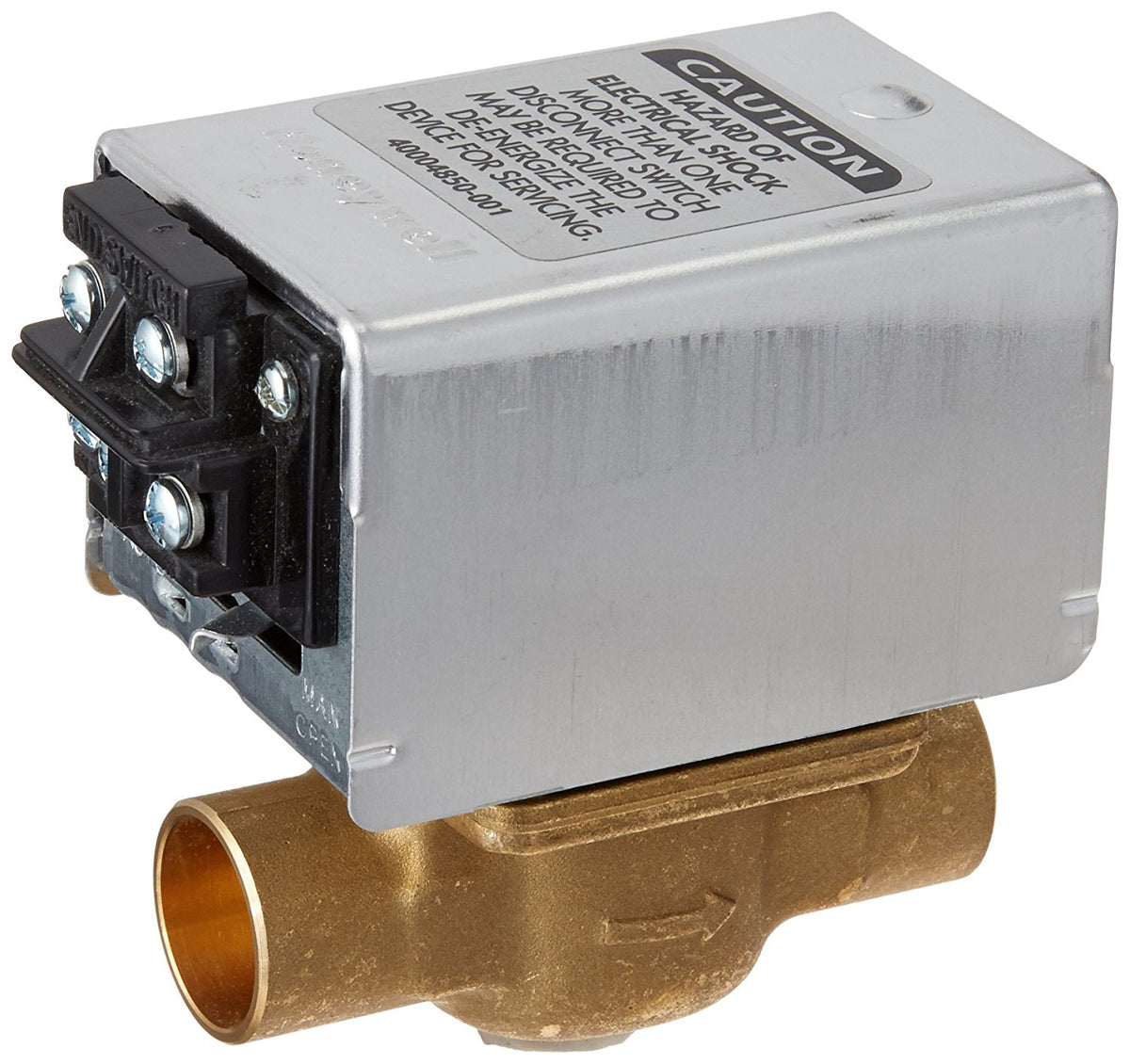

Honeywell V8043F1036 Sweat Zone Valve with Auxiliary Switch, 3/4"

$85.39

Created with Sketch.
Shipping charges calculated at checkout.
1

Request a Bulk Quote

Thank you for your quote request. We will be in touch.

SKU: 10358011
MFG: V8043F1036

Description

Two-way on-off low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water. Manual opener for valve operation on power failure; valve returns to automatic position when power is restored. Compact construction for easy installation. Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system. Actuator motor may be replaced without removing the valve body or draining the system. Use this valve in closed loop hydronic systems that do not contain dissolved oxygen in system water, such as fresh water from frequent source of makeup water. Valve designed for cycling (not constantly powered on) applications.

  • 3/4" sweat fitting with auxiliary switch
  • Motorized hydronic zone valve
  • 2 position
  • Normally closed straight through valve for controlling hot/cold water with end switch
  • Manual opener
  • Terminal board with 5 terminals
  • 125 degree Fahrenheit maximum ambient temperature
  • 24V, 50/60 cycle.

Specifications:

  • Application: Hydronic Control
  • Frequency: 50 Hz; 60 Hz
  • Approvals, Underwriters Laboratories Inc.: UL Recognized: File MH11826
  • Tradeline Value: Tradeline
  • Operating Humidity Range (% RH): 5 to 95% relative humidity, non-condensing
  • Voltage: 24 Vac; Power Consumption--7.7 VA
  • Timing: Nominal Open--15 sec
  • Ambient Temperature Range (F): 125 F Maximum
  • Ambient Temperature Range (C): 52 C Maximum
  • Connection Type: Sweat
  • Body Pattern: Two-way, Straight-through
  • Pipe Size: 3/4"
  • Current Draw: 0.32A
  • Fluid Temperature (C): 10 C to 93 C
  • Fluid Temperature (F): 50 F to 200 F
  • Maximum Differential Pressure Ratings (Close-off) (psi): 20 psi
  • Maximum Differential Pressure Ratings (Close-off) (kPa): 138 kPa
  • Electrical Connections (in.): screw terminal block
  • Capacity (Cv): 3.5 Cv
  • Capacity (Kv): 3 Kv
  • Valve Action: Spring return to close
  • Valve Type: Zone Valve
  • Materials (Body): Brass
  • Materials (Seat): Brass
  • Materials (Stem): Stainless Steel
  • End Switch Rating: 50 VA pilot duty @ 24 V; 4.4 A running with 26.4 A inrush @ 120 V
  • Actuation: Two position
  • De-energized Position: Normally Closed
  • Auxiliary End Switch: N.O. SPST
  • Static Pressure Rating (psi): 125 psi
  • Static Pressure Rating (kPa): 862 kPa
  • Materials (Plug/Ball/Disc): Buna-N (NBR) Rubber Ball
  • Manual Opener: Yes

Specifications

MFR:
V8043F1036
SKU:
10358011
UPC:
085267000765
Brand:
Honeywell
Length:
2
Width:
3
Height:
1
