Greenlee

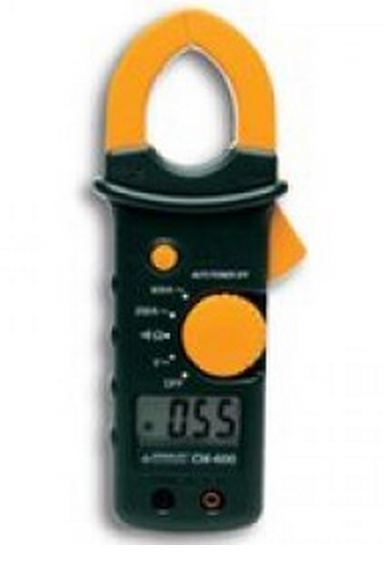

Greenlee CM-660 Calibrated AC True-RMS Voltage Clamp Meter, 600 VAC/VDC, 600 Amp
Item # 11897862Mfr # CM-660UPC 783310022114
$156.58
Product Overview
Greenlee CM-660 Calibrated True-RMS Voltage Clamp Meter measures AC amperage, AC/DC voltage and resistance. True RMS for accurate measurements when the voltage or current waveform is distorted by non-linear loads. Over molded grip for additional stability. Flashlight aids in positioning when working in dark areas. Amperage measurement 400.0, 600 amp. Voltage measurement 400.0, 600 volt. 3-1/2-digit LCD display. Jaw opens 1.38". Auto power off for longer battery life. Measurement category Cat III, 600 volt per UL 3111-1.
- Measures AC current
- AC voltage measurement with digital low pass filter for accurate readings on variable frequency drives
- Also measures DC voltage, resistance and frequency
- Tests continuity and diodes
- AmpTip increases accuracy on small wires and low current
- Two voltage detection modes - non-contact or using a single test lead
- Data hold and REL (zero) buttons
- Recording of Maximum, Minimum, and Average readings
- Flashlight aids in positioning when working in dark areas.
Specifications
- Amperage Measurement
- 60, 600 Amps AC
- Display
- LCD, 6000 Count
- Frequency Rating
- Voltage and AmpTip™ current: 50/60 Hz. High current: 50 to400 Hz
- Includes
- (2) 1.5V AAA batteries, test leads, carrying case
- Jaw Opening
- 1.18" (30 mm)
- Measurement Category
- CAT III 600V, CAT IV 300V
- Replacement Part
- TSG-3 test leads, TC-10 carrying case
- Resistance Measurement
- 600, 6k, 60k Ohms
- Standard
- CAT III, C/US UL Listed, CE
- True Power
- AC True RMS
- Voltage Measurement
- 600 Volts AC/DC
- Brand
- Greenlee
- Mfr number
- CM-660
- Item number
- 11897862
- UPC
- 783310022114
