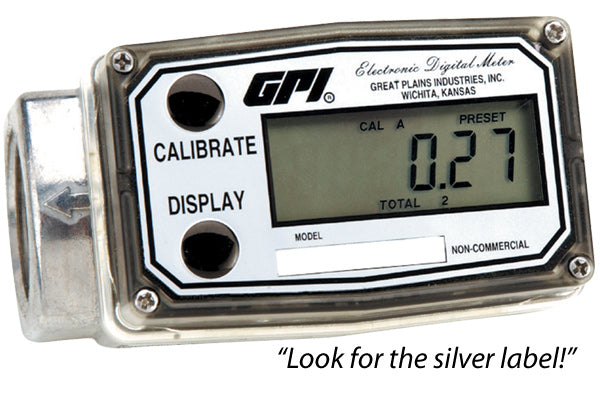

GPI 03A31GM Fuel Meter, 3 To 50 GPM, 300 PSI
Aluminum turbine meter with LCD readout for gallons and litres with 1 in. NPT threads. 3 to 50 GPM (10 to 190 LPM). Field replaceable lithium batteries. Factory and field calibration. Look for the silver label.
- For use with up to E15 gas
- Diesel up to B20
- Provides both batch and cumulative totals
- Biodiesel 100 & kerosene.
- Design type: turbine
- Fitting: NPT
- Accuracy: ±1.5 % of reading
- Repeatability: ±0.2 %
- Flow range 3 to 50 GPM 11 to 190 LPM
- Pressure rating: 20.7 bar 300 PSI
- Operating temperature: +14 to +140 ºF -10 to +60 ºC
- Wetted materials: aluminum housing, ceramic bearings, tungsten carbide shaft, nylon rotor, ferrite signal generators & 316 stainless steel rings
- Display: LCD 6 digits
- Powered by: lithium battery
- To use with: diesel fuel (biodiesel blends B20) gasoline (alcohol blends E15) kerosene
- Do not use with: water or chemicals
- Model: 03A31GM
- Approvals: CE, FM, ATEX-ANNEX VIII, and U.L. Classifed to canadian standards.
