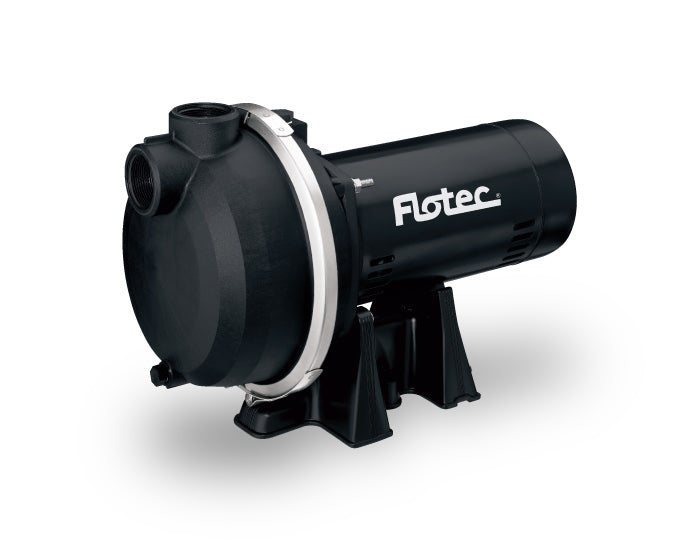

Flotec FP5172 Dual Voltage Composite Sprinkler Pump, 1-1/2 HP

$394.19

Created with Sketch.
Shipping charges calculated at checkout.
1

Request a Bulk Quote

Thank you for your quote request. We will be in touch.

SKU: 12063165
MFG: FP5172

Description

Highlights:

  • Superior performance at depths to water of 20' or less
  • Fiberglass-reinforced thermoplastic pump housing for the highest corrosion resistance
  • Ready-to-install 230 volt motor (dual voltage)
  • Self-priming after pump housing is initially filled (Check Valve or Foot Valve required)

Specifications:

  • Body construction: Thermoplastic
  • Horsepower: 1-1/2
  • Maximum capacity: 67 GPM
  • Flow at 10' lift and 30 psi: 45 GPM
  • Maximum lift: 25'
  • Maximum pressure: 47 psi
  • Suction pipe size: 1-1/2" NPT
  • Discharge pipe size: 1-1/2" NPT
  • AMP draw (full load):  9.6 amps on 230v / 19.2 amps on 115v
  • Voltage: 230v / 115v , 60 Hz
  • Recommended breaker: 15 amp for 230v / 25 amp for 115v
  • Maximum water temperature: 140 °F (60 °C)
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Specifications

MFR:
FP5172
SKU:
12063165
UPC:
022315100718
Brand:
Flotec
Length:
22
Width:
13
Height:
14
