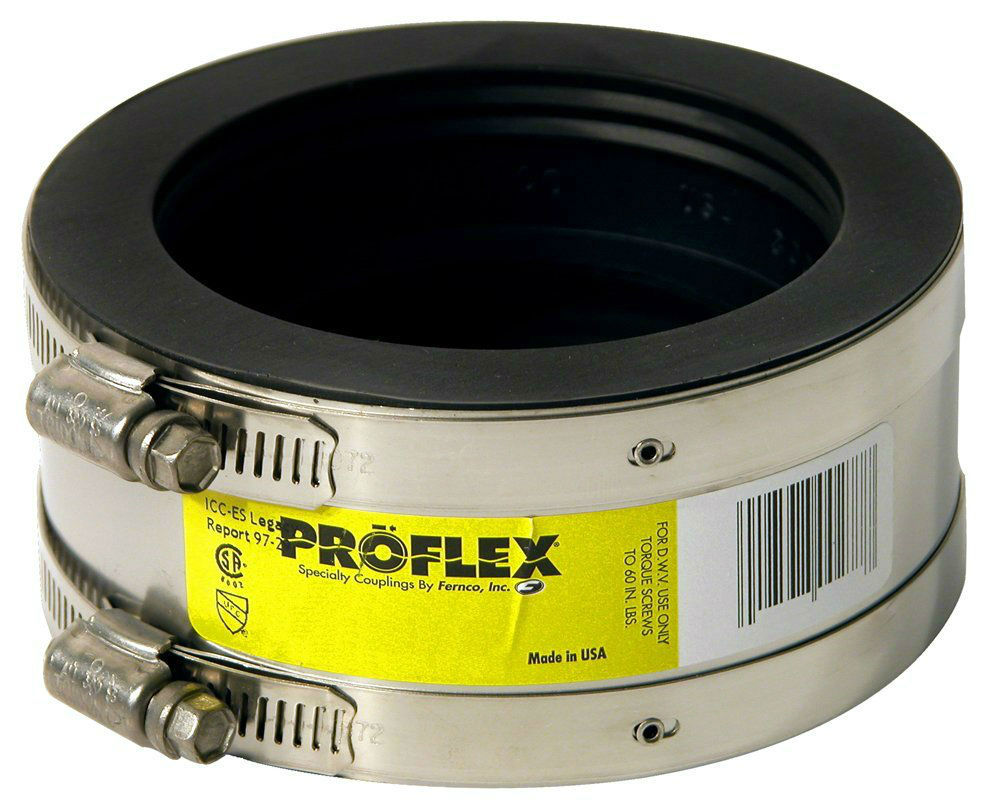

Fernco® P3001-44 Proflex® Shielded Specialty Coupling, 4"
Fernco® P3001-44 Proflex® Shielded Specialty Coupling, 4"
$20.51
SKU: 11200903
MFG: P3001-44
Description
Proflex allows you to make transition pipe connections that are resistant to shear forces, while creating a rigid, long-lasting pipe joint. From 1 ½" to 8" - proflex connects cast iron, plastic, steel, copper and tubular, drain waste and vent systems.
- .012" stainless steel shield
- 301 stainless steel clamp bands
Specifications:
- Gasket material: neoprene
- Gasket id: part no. and application on each gasket.
- Shield assembly material requirements: all 300 series s.s.
- Clamp
- Band = 301 stainless steel .025 x .500 x length
- Housing = 301 stainless steel - fernco
- Screw = 305 stainless steel 5/16" hex - no slot
- Shield - 301 stainless steel .012 x 2.125 x length
- Eyelet - 305 stainless steel
- Installation torque = 60" lbs.
- Maximum test pressure: 4.3 psi (29.6kpa)
- Maximum operating temperature: 180° f
- Conforms to the requirement of astm c1460
Specifications
MFR:
P3001-44
SKU:
11200903
UPC:
018578003170
Brand:
Fernco
Length:
6
Width:
6
Height:
3
