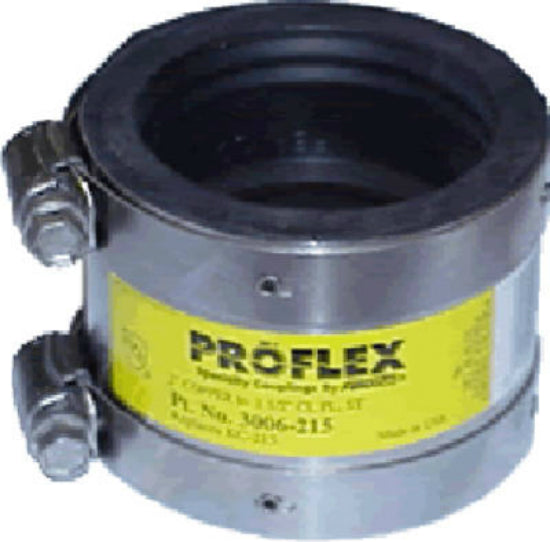

Fernco® P3000-150 Proflex® Shielded Specialty Coupling, 1-1/2"

Shielded transition coupling designed to resist shear forces. Proflex® allows you to make transition pipe connections that are resistant to shear forces, while creating a rigid, long-lasting pipe joint.

• Connects: 1-1/2" cast iron, plastic or steel to 1-1/2" cast iron, plastic or steel
• 0.012" stainless steel shield
• 301 Stainless Steel Clamp Bands
• Gasket Material: Neoprene
• Gasket ID: Part No. and application on each gasket.
• Shield assembly material requirements: All 300 series stainless steel
• Shield - 301 stainless steel .012 x 2.125 x length
• Eyelet - 305 stainless steel
• Installation Torque = 60" lbs.
• Maximum test pressure: 4.3 PSI (29.6KPA)
• Maximum operating temperature: 180° F
• Conforms to the requirement of ASTM C1460

Clamp:

• Band = 301 stainless steel .025 x .500 x length
• Housing = 301 stainless steel - Fernco
• Screw = 305 stainless steel 5/16" Hex - No Slot.

Shielded transition coupling designed to resist shear forces. Proflex® allows you to make transition pipe connections that are resistant to shear forces, while creating a rigid, long-lasting pipe joint.

1-1/2" Cast Iron, Plastic Or Steel To 1-1/2" Cast Iron, Plastic Or Steel.
0.012" stainless steel shield
301 Stainless Steel Clamp Bands
Gasket Material: Neoprene
Gasket ID: Part No. and application on each gasket.
Shield assembly material requirements: All 300 series stainless steel
Shield - 301 stainless steel .012 x 2.125 x length
Eyelet - 305 stainless steel
Installation Torque = 60" lbs.
Maximum test pressure: 4.3 PSI (29.6KPA)
Maximum operating temperature: 180° F
Conforms to the requirement of ASTM C1460

Clamp:

Band = 301 stainless steel .025 x .500 x length
Housing = 301 stainless steel - Fernco
Screw = 305 stainless steel 5/16" Hex - No Slot
