FastenMaster® FMTHR614-6 ThruLok™ Screw Bolt Fastening System, 6-1/4",
FastenMaster® FMTHR614-6 ThruLok™ Screw Bolt Fastening System, 6-1/4", 6-Count
$30.02
SKU: 11562238
MFG: FMTHR614-6
Description

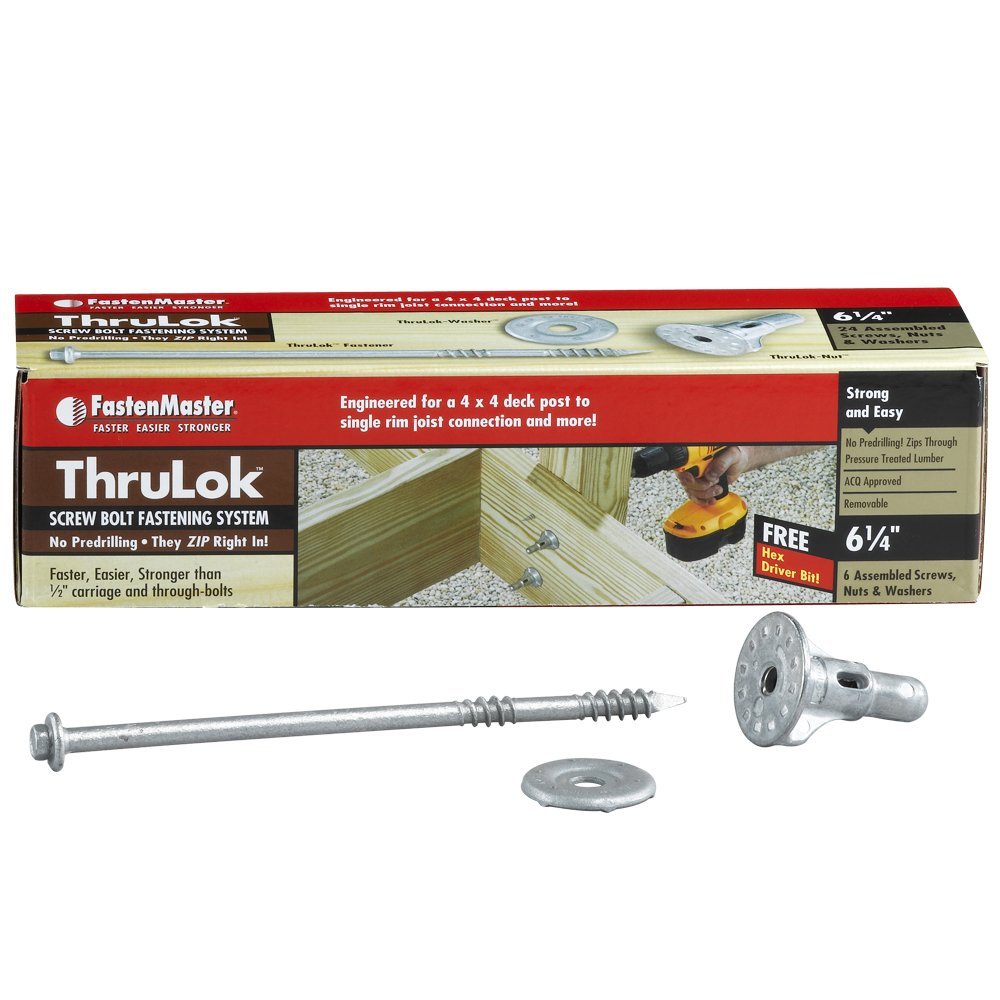

FastenMaster® ThruLok™ Screw Bolt Fastening System can be used for applications including multi-ply beams, deck posts, carrying beams and more. It combines the strength of a through-bolted connection with the speed of a LOK fastener with no predrilling required. Its three-part assembly includes a screw, featuring the patent-pending Paddle Point™, engineered washer and LOK-Nut.
- 6 Count
- Length: 6-1/4"
- Wood Dim Range: 4-1/2" to 5-1/4"

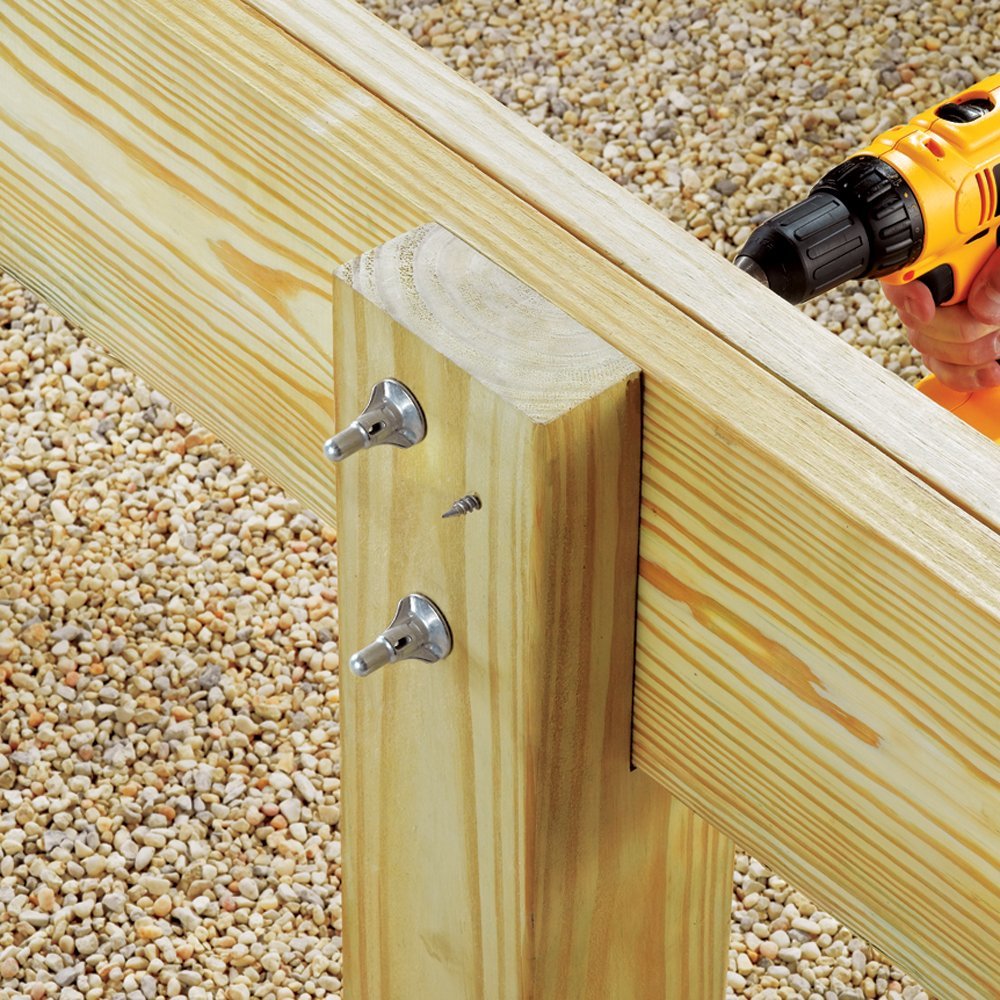

- Typical Applications: 4 x 4 deck posts to 2x rim joists connections
- Installs with an 18 volt cordless drill
- No drill bits or wrenches required
- Galvanized coating meets IRC ACQ corrosion requirement.
Installation:
- Put the ThruLok™-Washer on the ThruLok™ screw with the teeth of the washer facing away from the head of the fastener. No predrilling required when properly installed. Using a 1/2" high torque variable speed drill (18V if cordless), drive the ThruLok™ until washer and hex head are just above the wood surface (approx 1/4") and point of screw protrudes out other side of connection. Thread the ThruLok™-Nut onto point of fastener. Hand tighten nut until flush with wood. Tighten screw with drill. Repeat to match code-compliant fastening pattern.
- Using an Impact driver or high torque 1/2" variable speed drill (18V if cordless), drive the ThruLok™ until the pre-installed washer and hex head are almost flush against the wood surface. On the opposite side, thread the ThruLok™ nut onto the exposed point of the fastener and firmly hand tighten. Finish by driving the screw until washer and nut are snug.
Specifications
MFR:
FMTHR614-6
SKU:
11562238
UPC:
608309419105
Brand:
FastenMaster
Length:
3
Width:
10
Height:
3
