Eaton

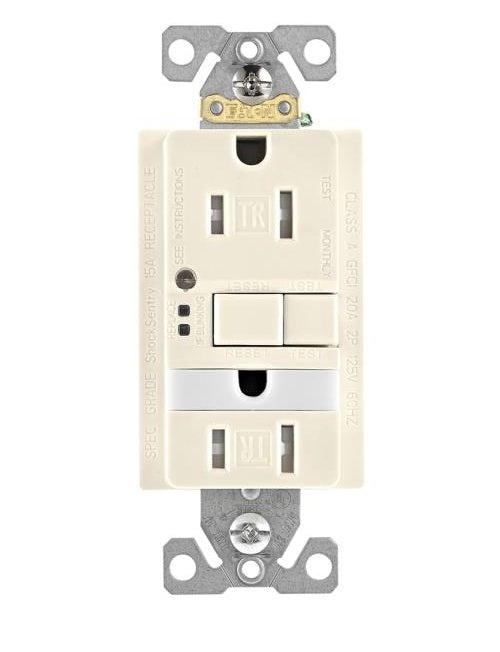

Eaton TRSGFNL15LA Ground Fault Circuit Interrupters, Light Almond, 125 Vac
Item # 11945247Mfr # TRSGFNL15LAUPC 032664743160
$36.40
Product Overview
Highlights:
- Lock-out functionality protects from mis-wired line-load connections and GFCI circuitry damage
- Nightlight is controlled by a light sensor that turns the light On in the dark and Off in light
- LEDs produce color temperature of 3000-3500K for a warm “incandescent-like” glow
- Ground termination with backwire clamp provides secure wiring and reduces installation time
- Tapered backwire openings handle multiple wire sizes and types for applications up to #10 AWD solid or stranded wire
- When downstream receptacles are wired from load side, a 20A feed-through rating offers full protection
- Tamper resistant shutters provide compliance with 2014 NEC Article 406.12
- Double and triple wipe blade contacts and double wipe ground contacts to insure long-term blade retention
- Visual indicator light provides quick visual reference of a tripped or “end of life” condition
Specifications
- Series
- Arrow Hart
- Type
- Duplex, Tamper Resistant
- Number of Poles
- 2
- Voltage Rating
- 125 VAC
- Number Of Wires
- 3
- Amperage Rating
- 15 A
- Wire Size
- 10 AWG
- Frequency Rating
- 60 Hz
- Material
- Thermoplastic/Polypropylene Top, Thermoplastic/PVC Bottom Housing
- Short Circuit Rating
- 10
- Nema Rating
- NEMA 5-15R
- Temperature Rating
- -35 TO 66 deg C
- Connection
- Back and Side Wired
- Includes
- Standard Size Thermoplastic WAllplate
- Dielectric Strength
- 2000 V
- Standards
- cULus Listed to UL498 and UL943, File No E60120, Meets All UL943 (GFCI), UL498 (Receptacles), UL498 and applicable CSA Requirements, NOM Certified
- Type of Indicators
- Visual
- Overall Length
- 4.2"
- Overall Width
- 1.68"
- Overall Depth
- 1.27"
- Terminal Type
- Screw
- Lumens
- 50
- Grade
- Commercial
- Brand
- Eaton
- Mfr number
- TRSGFNL15LA
- Item number
- 11945247
- UPC
- 032664743160
