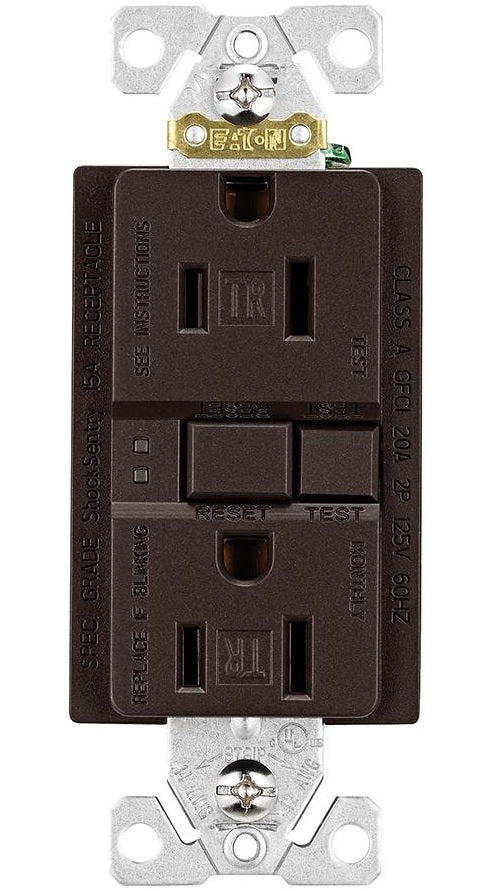

Eaton TRSGF15RB-L Self-Test Tamper Resistant GFCI Receptacle, 15 Amp

Highlights:

• Duplex Receptacles
• Tamper Resistant - Self-Test
• Additionally, GFCIs incorporate a safety lock-out function to protect against mis-wired line-load connections and GFCI circuitry damage
• Tamper resistant shutters
• Performs periodic self-tests to ensure integrity of GFCI protection, if no ground-fault protection is detected, the device will trip, will not reset and the status indicator light will glow amber
• Meets and exceeds 10 kA short circuit testing and underwriters laboratories (UL) 2006 UL943 safety standards
• Large visual trip indicator light gives quick notification of a tripped or “end of life” condition
• Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
• Ground termination with back wire clamp provides secure wiring and reduces installation time
• Tamper resistant shutters resist the insertion of foreign objects
• Line side terminals are backed out and staked for fast installation
• Horizontal test/reset button alignment provides larger unobstructed area
• Test and reset buttons are color matched to provide superior aesthetics
• Tapered back wire openings handle multiple wire sizes and types for applications up to NO 10 AWG solid or stranded wire; when downstream receptacles are wired from load side, a 20 amp feed-through rating offers full protection; line-load miswiring protection: GFCI’s will not provide power downstream when wired incorrectly; Tri-combo head terminal and mounting screws
