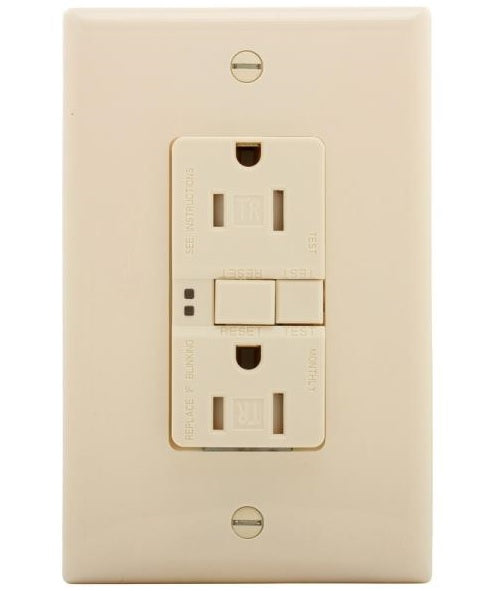

Eaton TRSGF15LA Self-Test Tamper Resistant GFCI Receptacle, 15 Amp

$28.37

Created with Sketch.
Shipping charges calculated at checkout.
1

Request a Bulk Quote

Thank you for your quote request. We will be in touch.

SKU: 11947722
MFG: TRSGF15LA

Description

Highlights:

  • Color: Light Almond
  • Duplex Receptacles
  • Additionally, GFCIs incorporate a safety lock-out function to protect against mis-wired line-load connections and GFCI circuitry damage. Tamper resistant shutters
  • Performs periodic self-tests to ensure integrity of GFCI protection, if no ground-fault protection is detected, the device will trip, will not reset and the status indicator light will glow amber
  • Meets and exceeds 10 kA short circuit testing and underwriters laboratories (UL) 2006 UL943 safety standards
  • Large visual trip indicator light gives quick notification of a tripped or “end of life” condition
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
  • Ground termination with back wire clamp provides secure wiring and reduces installation time
  • Tamper resistant shutters resist the insertion of foreign objects
  • Line side terminals are backed out and staked for fast installation
  • Horizontal test/reset button alignment provides larger unobstructed area
  • Test and reset buttons are color matched to provide superior aesthetics
  • Tapered back wire openings handle multiple wire sizes and types for applications up to NO 10 AWG solid or stranded wire; when downstream receptacles are wired from load side, a 20 amp feed-through rating offers full protection; line-load miswiring protection: GFCI’s will not provide power downstream when wired incorrectly; Tri-combo head terminal and mounting screws

Specifications:

  • Type: Self-Test, Tamper Resistant
  • Number of Poles: 2
  • Voltage: 125 Volts
  • Number Of Wires: 3
  • Amperage: 15 Amp
  • Wire Size: 10 AWG
  • Frequency Rating: 60 Hz
  • Material: Nylon
  • Short Circuit Rating: 10
  • Nema Rating: NEMA 5-15R
  • Grounding Style: Automatic
  • Temperature Rating: -35 TO 66 degree C
  • Connection: Back and Side Wired
  • Dielectric Strength: 2000 V
  • Standards: cULus Listed to UL498 and UL943, File No E60120, Meets All UL943 (GFCI), UL498 (Receptacles), UL498 and applicable CSA Requirements, NOM Certified
  • Type of Indicators: Large Visual Trip
  • Enclosure Type: Metal
  • Overall Length: 4.2"
  • Overall Width: 1.68"
  • Overall Depth: 1.27"
  • Terminal Type: Screw

Specifications

MFR:
TRSGF15LA
SKU:
11947722
UPC:
032664739880
Brand:
Eaton
Length:
5
Width:
2
Height:
3
