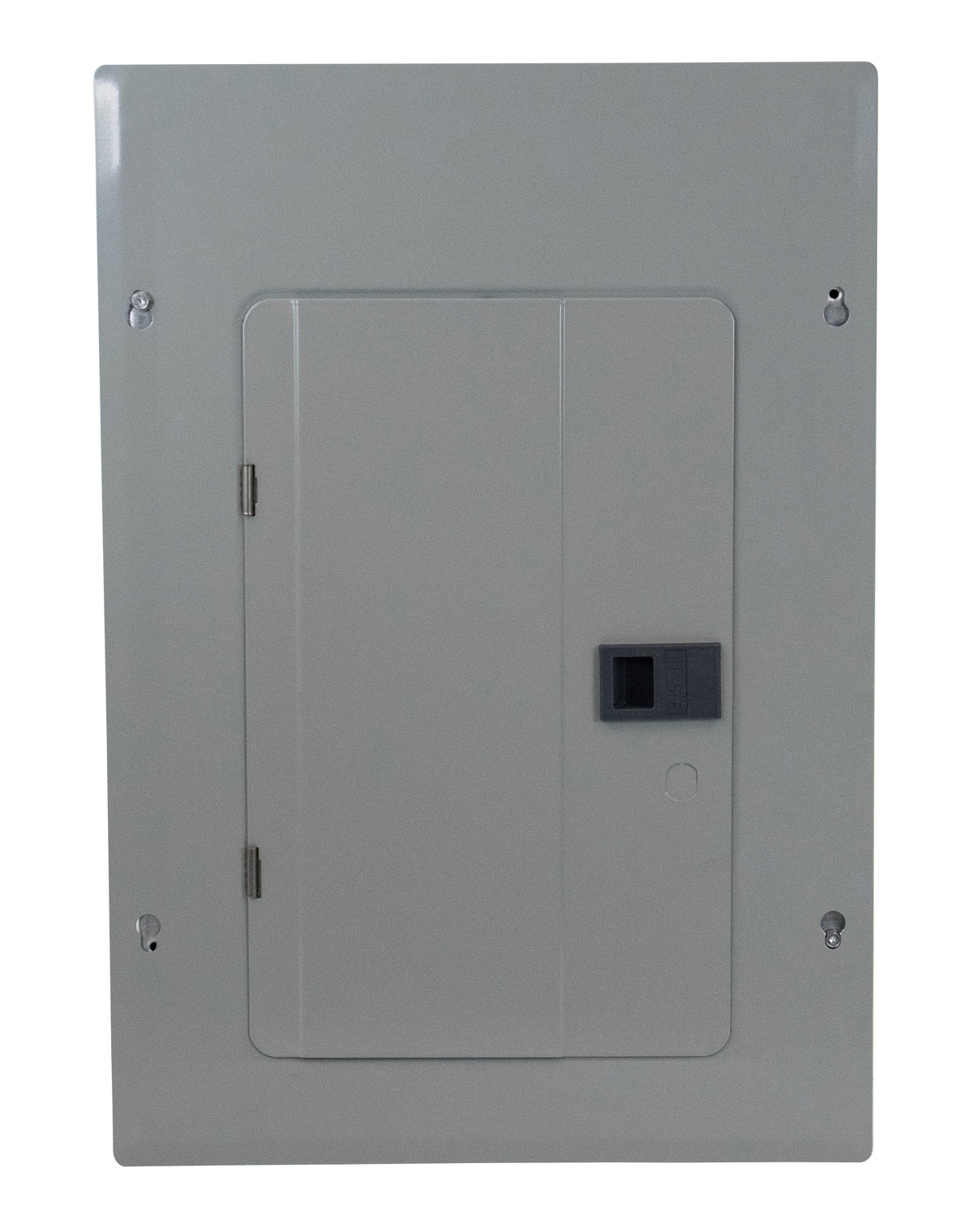

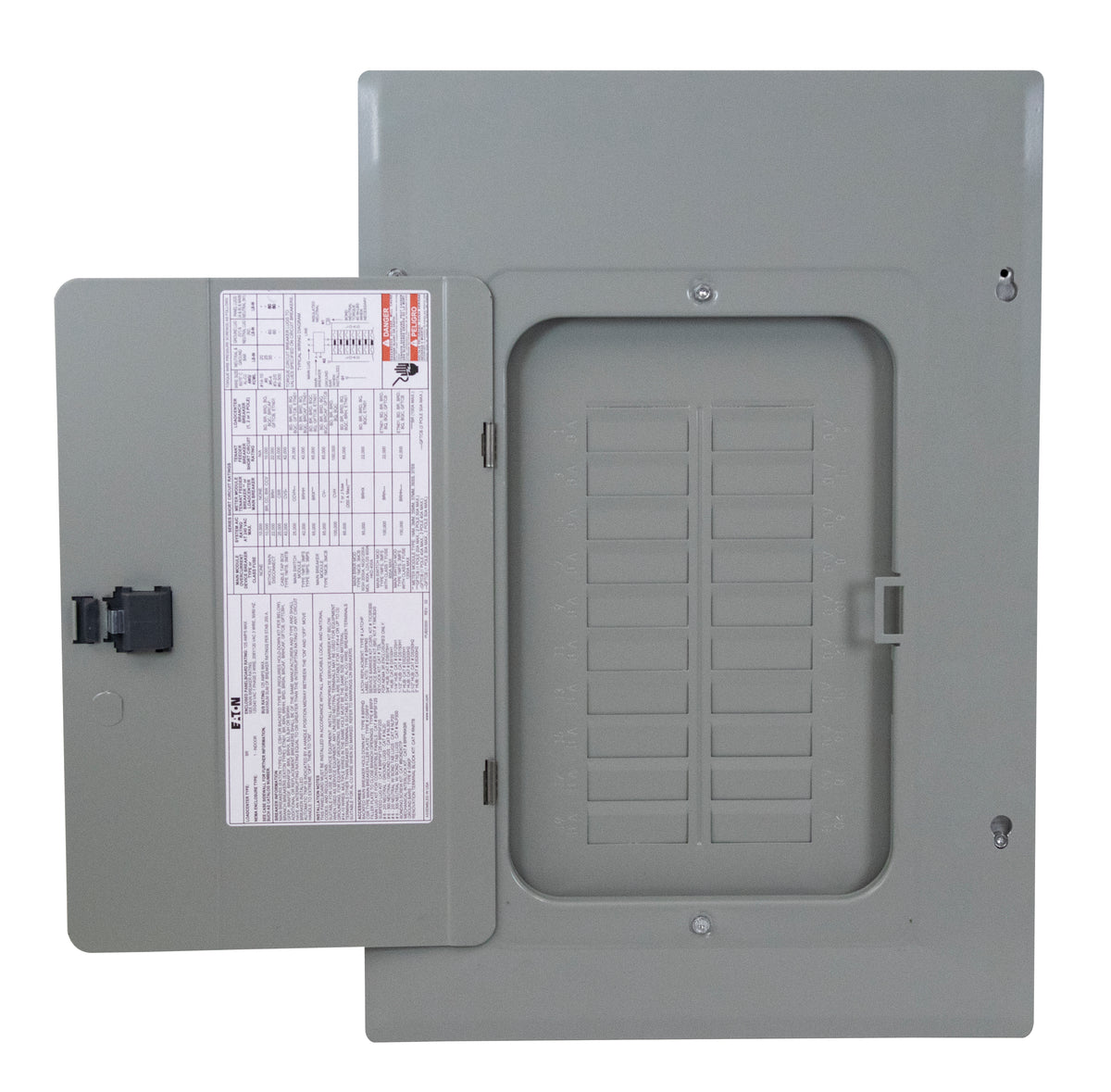

Eaton BRP20L200 Indoor Main Lug Plug-On Type BR Load Center, 40-Circuits, 200A
$149.99
Product Overview
Eaton Type BR Load Center features BR type plug-on neutral breaker box eliminates the pigtail connection providing time and labor savings. Dedicated neutral bus for breaker connection. In-board neutral bar increases gutter space to allow for professional installation of conductors. Backed out neutral screws allows for quick connection of neutral and ground conductors. Optimized knockout locations for additional access and easier to remove. Self-leveling tabs allow for quick drywall offset and helps simplify installation. Keyhole hanging feature allows for ease of cover installation for both top and bottom feed applications. Rigid cover spine provides strength when twist outs are removed allowing for easier removal.
- Plug-on neutral design for ease of installation
- Combination cover for flush or surface mount
- Convertible to main breaker load center by using #WFP2200T2 200Amp main breaker kit (not included).
Specifications
- Amperage rating
- 200 Amp
- Maximum Number 1" Spaces
- 20
- Circuits
- 40
- Enclosure Type
- Indoor
- Load Center Type
- Main Lug
- Used with
- Type BR 1" breakers
- Brand
- Eaton
- Mfr number
- BRP20L200
- Item number
- 12354243
- UPC
- 786689053260
