CST/Berger RL25HVCK Rotary Laser Complete Kit

$867.51

1

Request a Bulk Quote

Thank you for your quote request. We will be in touch.

SKU: 11853816
MFG: RL25HVCK

Description

A horizontal and vertical dual beam single slope interior and exterior rotary laser that delivers professional performance at an affordable price; ideal for exterior and interior general construction and aligning jobs such as grading, concrete forms and pads, site prep and elevation transfer as well as interior jobs such as building partitions, drop ceilings, electrical installation and other alignment jobs; includes: remote control, RD1 detector with bracket, laser glasses, magnetic target, adjustable wall mount, batteries, aluminum tripod, 8-feet leveling rod and a carrying case.



Highlights:



  • 2 Beams
  • Rugged Design (with IP56 rating) to handle the extreme jobsite conditions
  • 3/32-in. accuracy and extended range of 2000-ft (diameter)
  • Single axis slope control to change the slope of the laser in complex leveling applications
  • ADS (Anti-Drift system) alerts when laser has drifted from benchmark
  • Durable housing design with thik over-mold in key impact areas
  • Water and dust protected to withstand the toughest jobsite environment
  • More runtime up to 85 hours of runtime with (3) D-cell alkaline batteries




Applications:



  • Excavation
  • Earth leveling
  • Leveling concrete forms




Technical Data:



  • Laser dicode: 630-670nm = 5mW
  • Laser Class: 3R
  • Self-leveling range: ±5°
  • Length: 185.4 mm
  • Width: 218.4 mm
  • Height: 195.6 mm

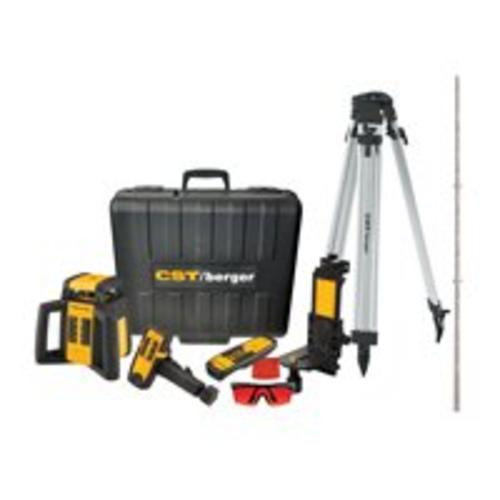

Includes:



  • RD1 laser detector with bracket
  • RM7 remote control
  • 57-VMount wall mount
  • 60-ALQCI20 tripod
  • 06-808C leveling rod
  • Laser target
  • Laser glasses
  • (3) D-cell batteries





Specifications

MFR:
RL25HVCK
SKU:
11853816
UPC:
644425011274
Brand:
Cst/Berger
Length:
40
Width:
16
Height:
16
Weight:
41.0 lb
