Cooper Wiring

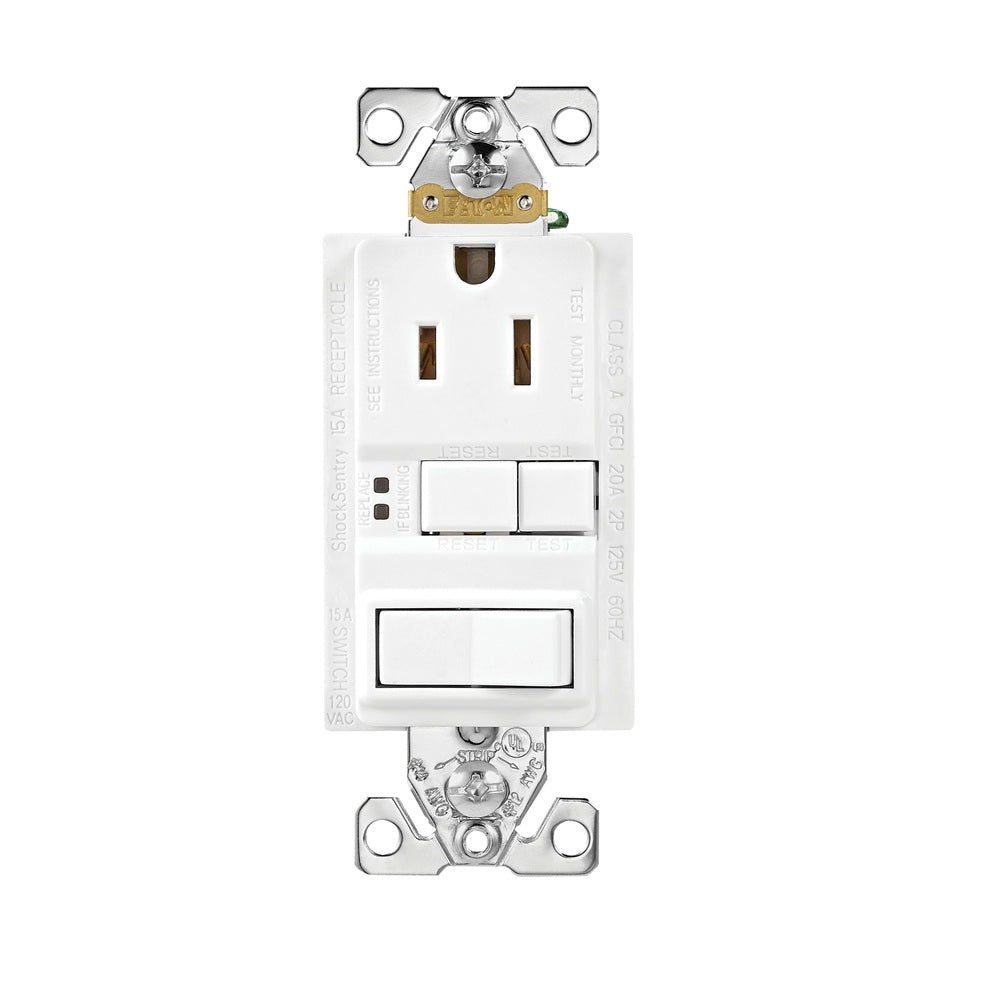

Cooper Wiring TRSGFS15WML Switch/GFCI Receptacle, 125 Volts, 15 AMp
Item # 12337152Mfr # TRSGFS15WMLUPC 032664753039
$49.43
Product Overview
Highlights:
- Wall plate
- Use for indoor
- Performs periodic self-tests to ensure integrity of GFCI protection if no ground-fault protection is detected, the device will trip, will not reset and the status indicator light will glow amber
- Tapered back wire openings handle multiple wire sizes and types for applications up-to NO 10 AWG solid or stranded wire
- When downstream receptacles are wired from load side, a 20 amp feed-through rating offers full protection
- Test and reset buttons are color matched to provide superior aesthetics
- Longer, wider bridge strap provides 40% more contact area with wallboard, virtually eliminating floating installations
- Exclusive built-in wire stripper provides fast stripping of wire without tools
- Line-load mis-wiring protection
- Tri-combo head terminal and mounting screws
- cULus Listed
- UL Listed
- NOM Certified
- CSA Requirements
Specifications
- Color
- White
- Series
- SGFS
- Number of Poles
- 2
- Voltage Rating
- 125 Volts
- Number Of Wires
- 3
- Wattage
- 1800 W at 120V/AC
- Amperage Rating
- 15 A
- Wire Size
- 14 - 10 AWG
- Frequency Rating
- 60 Hz
- Material
- Polypropylene top housing, PVC bottom housing
- Phase
- 1
- Nema Rating
- 5-15R
- Mounting Type
- Wall
- Grounding Style
- Self-Grounding
- Temperature Rating
- -35 to 66 degree C
- Dielectric Strength
- 2000 V
- Brand
- Cooper Wiring
- Mfr number
- TRSGFS15WML
- Item number
- 12337152
- UPC
- 032664753039
