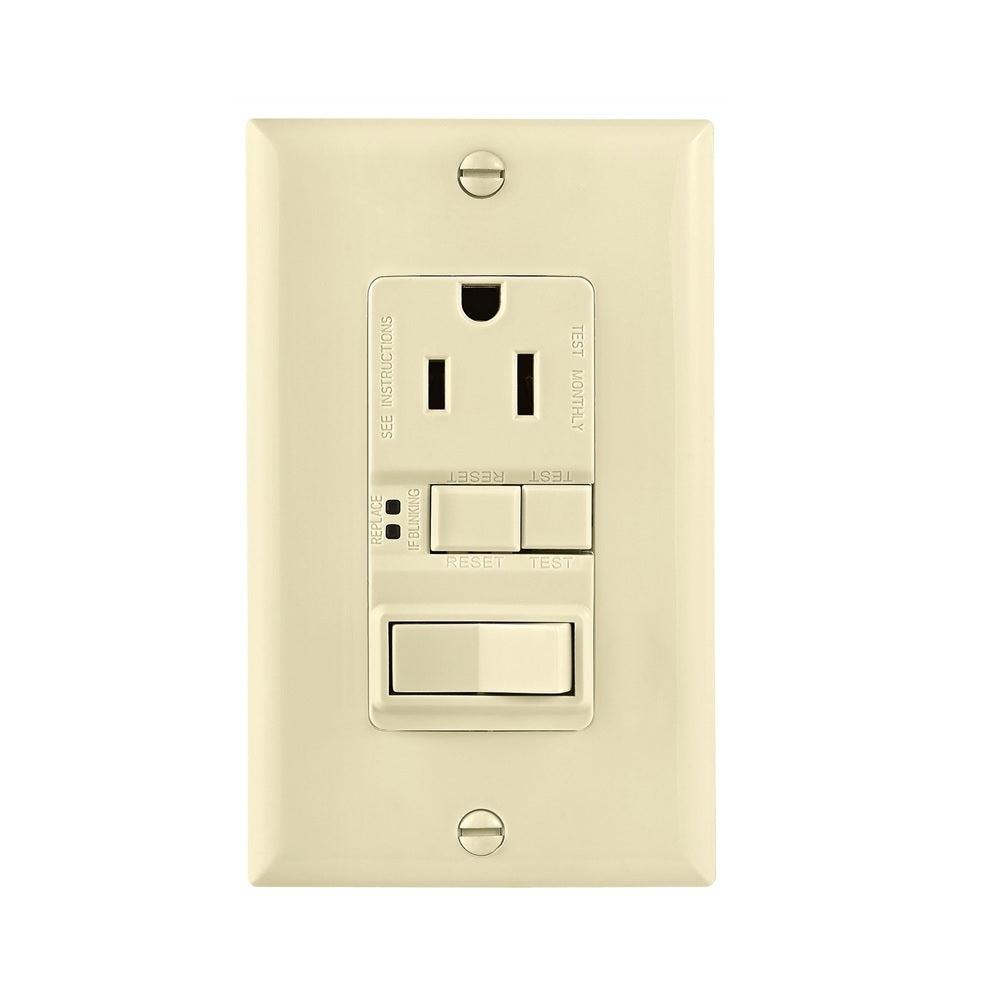

Cooper Wiring TRSGFS15LA-M-L Self-Test GFCI Receptacle With Switch, Light Almond

$46.39

Created with Sketch.
Shipping charges calculated at checkout.
1

Request a Bulk Quote

Thank you for your quote request. We will be in touch.

SKU: 12348465
MFG: TRSGFS15LA-M-L

Description

Highlights:

  • Performs periodic self-tests to ensure integrity of GFCI protection if no ground-fault protection is detected, the device will trip, will not reset and the status indicator light will glow amber
  • Tapered back wire openings handle multiple wire sizes and types for applications up to NO 10 AWG solid or stranded wire
  • When downstream receptacles are wired from load side, a 20 amp feed-through rating offers full protection
  • Test and reset buttons are color matched to provide superior aesthetics
  • Exclusive built-in wire stripper provides fast stripping of wire without tools
  • Line-load miswiring protection: GFCIs will not provide power downstream when wired incorrectly
  • Tri-combo head terminal and mounting screws
  • cULus Listed to UL498 and UL943
  • File No E60120, Meets All UL943 (GFCI)
  • UL498 (Receptacles) UL20 (switch) and applicable CSA Requirements
  • NOM Certified

Specifications:

  • Color: Light Almond
  • Type: Self-Test
  • Number of Poles: 2
  • Voltage Rating: 125 Volt
  • Number Of Wires: 3
  • Wattage: 1800 Watt
  • Amperage Rating: 15 A
  • Width: 3.305"
  • Wire Size: 10 AWG
  • Depth: 2.266"
  • Frequency Rating: 60 Hz
  • Material: Polypropylene top, PVC bottom housing
  • Short Circuit Rating: 10
  • Nema Rating: NEMA 5-15R
  • Grounding Style: Automatic
  • Number of Outlets: 1
  • Temperature Rating: -35 TO 66 degree C
  • Connection: Back and Side Wired
  • Mid-Size WAllplate
  • Dielectric Strength: 2000 V
  • Type of Indicators: Visual
  • Overall Length: 6.197"
  • Enclosure Type: Metal
  • Overall Width: 3.305"
  • Overall Depth: 2.266"
  • Terminal Type: Screw

Specifications

MFR:
TRSGFS15LA-M-L
SKU:
12348465
UPC:
032664753053
Brand:
Cooper Wiring
Length:
6
Width:
3
Height:
4
