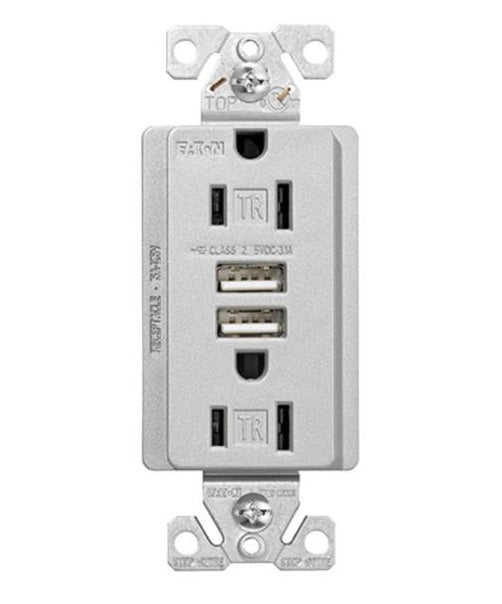

Cooper Wiring TR7755SG-K-L USB Charger With TR Duplex Receptacle

$28.99

1

Request a Bulk Quote

Thank you for your quote request. We will be in touch.

SKU: 11820192
MFG: TR7755SG-K-L

Description

Highlights:

  • USB, duplex receptacle
  • Thermoplastic top and back body are virtually unbreakable to deliver years of durable performance
  • Dual usb charging ports charge most compatible electronic devices that charge via a 5V power adapter
  • Three (3) pre-stripped 6” wire leads for line, neutral and ground for quick and easy installation
  • Backwire clamps on side terminals provide for easy installation of #12 and #14 awg wire (tr7740 and tr7741 only)
  • Triple wipe blade contacts and double wipe ground contacts to ensure long-term plug retention
  • Replaces a standard duplex receptacle and uses a decorator style wallplate
  • Specification grade device is built to withstand the tough demands of the commercial environment
  • Duplex receptacles withTamper resistant shutters
  • Steel mounting strap is zinc-plated for added corrosion resistance
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where jumper is used

Specifications:

  • Overall Dimensions: 1.3" W x 1.52" D x 4.19" H
  • Material: Thermoplastic
  • Voltage Rating: 125 VAC
  • Amperage Rating: 15 A
  • Dielectric Strength: 2000 V
  • Temperature Rating: -20 TO 60 Deg C
  • Nema Rating: NEMA 5-15R
  • Number Of Poles: 2
  • Number Of Wires: 3
  • Number Of Outlets: 2
  • Wire Size: 12 - 14
  • Grounding Style: Automatic
  • Connection: Wire Leads
  • Enclosure Type: Metal
  • Standards: CULus Listed UL 498 And UL1310, NOM Certified

Specifications

MFR:
TR7755SG-K-L
SKU:
11820192
UPC:
032664745225
Brand:
Cooper Wiring
Length:
5
Width:
2
Height:
3
Weight:
1.0 lb
