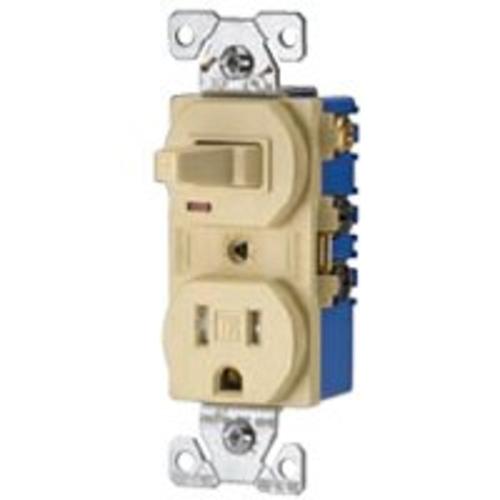

Cooper Wiring TR274V 3-Wire Toggle Combination Switch/Receptacle, 15 A
Cooper Wiring TR274V 3-Wire Toggle Combination Switch/Receptacle, 15 Amp, Ivory
$16.57
SKU: 11874615
MFG: TR274V
Description
"Cooper Wiring" Toggle Combination Switch/Receptacle
Traditional heavy duty grade combination switch with receptacle features UL listed Tamper Resistant shutters designed to prevent the insertion of foreign objects. TR274 features a neon pilot light which is On when switch is On. Switch is horsepower rated for motor loads per UL 20. Thermoplastic toggle, top and backbody are virtually unbreakable to deliver years of durable performance. Ultrasonic welding and integrated construction of the strap and body provide superior ground integrity even under heavy use. Durable, injection molded housings and PVC resin comply with UL94 V0 flammability ratings. Tri-combo screw heads offer greater installation flexibility.
Features:-
- Color: Ivory
- Configuration: 3-Way
- Wiring Method: Back & Side Wire
- Rating: 3-Wire NEMA 5-15 TR Receptacle
- Tamper Resistant: 2011 NEC Article 406.12 Compliant
- Steel mounting strap is zinc-plated for added corrosion resistance
- Convenient patented built-in wire stripper speeds installation
- Backwire clamps on side terminals provide for easy installation of #12 and #14 AWG wire
- Terminal screws are backed out and ready for wiring to enhance ease of installation
- Break-off provision for wiring both devices on the same circuit or on separate circuits
- Triple wipe blade contacts and double wipe ground contacts ensure long-term plug retention on receptacles
- Automatic grounding system eliminates the need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where a jumper is used
Specifications
MFR:
TR274V
SKU:
11874615
UPC:
032664750250
Brand:
Cooper Wiring
Length:
5
Width:
5
Height:
2
