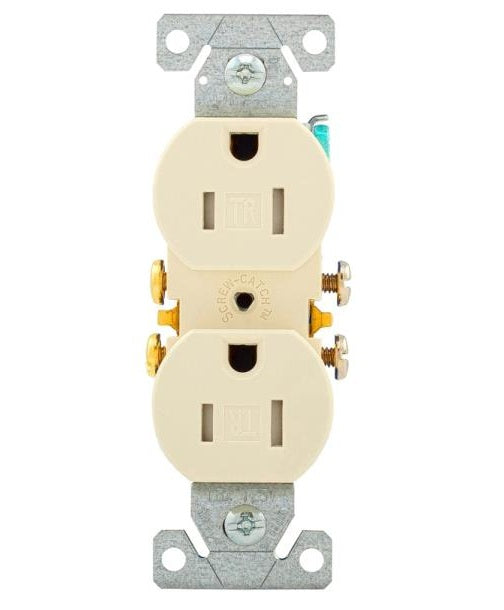

Cooper Wiring TR270LA Straight Blade Tamper Resistant Duplex Receptacle

$1.49

10

Request a Bulk Quote

Thank you for your quote request. We will be in touch.

SKU: 11851971
MFG: TR270LA

Description

Highlights:

  • Longer, wider strap provides 40 percent more contact area to wall board, virtually eliminates floating installations
  • Patented built-in wire stripper for no 14 and no 12 wire to speed installation
  • Patented built-in wire looper for pre-looping
  • Tri-combo screws accept slotted, philips and robertson-head tools for installation flexibility
  • Terminal screws backed out - ready for wiring
  • Side wire terminals accept up to no 10 solid or stranded wire
  • Push-in terminals accept no 14 solid wire for quick installation
  • High impact-resistant thermoplastic face and back body eliminates breakage
  • Double wipe ground contacts ensure long-term ground retention
  • Easy access split circuit break-off tab; screw-catch features on duplex devices speeds mounting of wallplates

Specifications:

  • Overall Dimensions: 1.015" D x 4.19" L x 1.3" W
  • Amperage Rating: 15 A
  • Connection: Screw
  • Type: Straight Blade, Tamper Resistant
  • Number Of Poles: 2
  • Material: Thermoplastic/PVC
  • Mounting Type: Flush
  • Number Of Wires: 3
  • Nema Rating: NEMA 5-15R
  • Wire Size: 14 - 10 AWG
  • Voltage Rating: 125 VAC
  • Standards: CULus Listed To UL 498, File No E15058, NOM Certified
  • Dielectric Strength: 2000 V
  • Temperature Rating: -20 TO 60 Deg C
  • Special Features: Residential Grade, Side And Push Wire

Specifications

MFR:
TR270LA
SKU:
11851971
UPC:
032664665271
Brand:
Cooper Wiring
Length:
3
Width:
8
Height:
5
Weight:
0.48 lb
