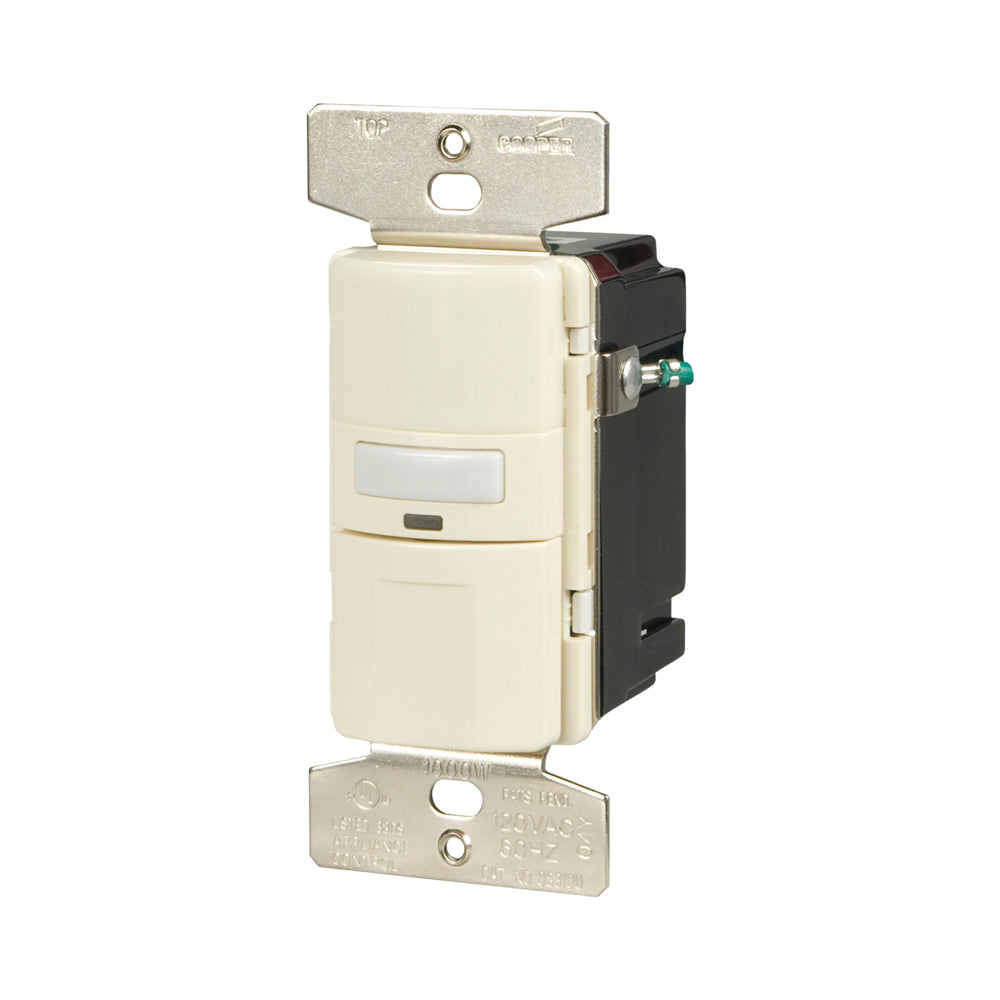

Cooper Wiring OS310U-LA-K 3-Way Occupancy & Vacancy Sensor Switch

$50.01

Created with Sketch.
Shipping charges calculated at checkout.
1

Request a Bulk Quote

Thank you for your quote request. We will be in touch.

SKU: 11778036
MFG: OS310U-LA-K

Description

Highlights:

  • Selectable On/Off LED nightlight with press and hold dimming function
  • Green LED indicates load status, provides locator light in dark and blinks to indicate motion detection
  • Selectable time delay of 5 seconds (test), 5 minutes, 15 minutes and 30 minutes for lights to remain on after room is vacated
  • Selectable ambient light override when there is acceptable natural light
  • Uniform color matched pir lens to device housing
  • Bypass feature to allows the sensor to perform as a traditional switch (manual on/manual off)
  • Mid size decorator wallplate included with product
  • Push pad design provides minimal travel and crisp actuation
  • Replaces a standard light or fan switch
  • Walk-in-delay feature allows sensor to turn lights off without time delay when motion is detected briefly in room

Specifications:

  • Overall Dimensions: 3" L x 5" W x 2" D
  • Material: Polycarbonate
  • Finish: Gloss
  • Type: 3-Way
  • Voltage Rating: 120 VAC
  • Wattage: 1000
  • Frequency Rating: 60 Hz
  • Sensing Angle: 180 Deg
  • Timer Range: 5 - 30 Min
  • Sensor Type: Passive Infrared
  • Indicator: Green LED
  • Connection: Wire Leads
  • Mounting Type: WAll/Box
  • Temperature Rating: 0 - 40 Deg C
  • Standards: CULus Listed, NOM 426
  • Special Features: 1-Pole, 1/2 Hp Motor
  • Lamp Type: Incandescent, Magnetic Low-Voltage, Electronic Low-Voltage, Fluorescent, CFL, LED

Specifications

MFR:
OS310U-LA-K
SKU:
11778036
UPC:
032664710308
Brand:
Cooper Wiring
Length:
6
Width:
2
Height:
4
Attachment:
