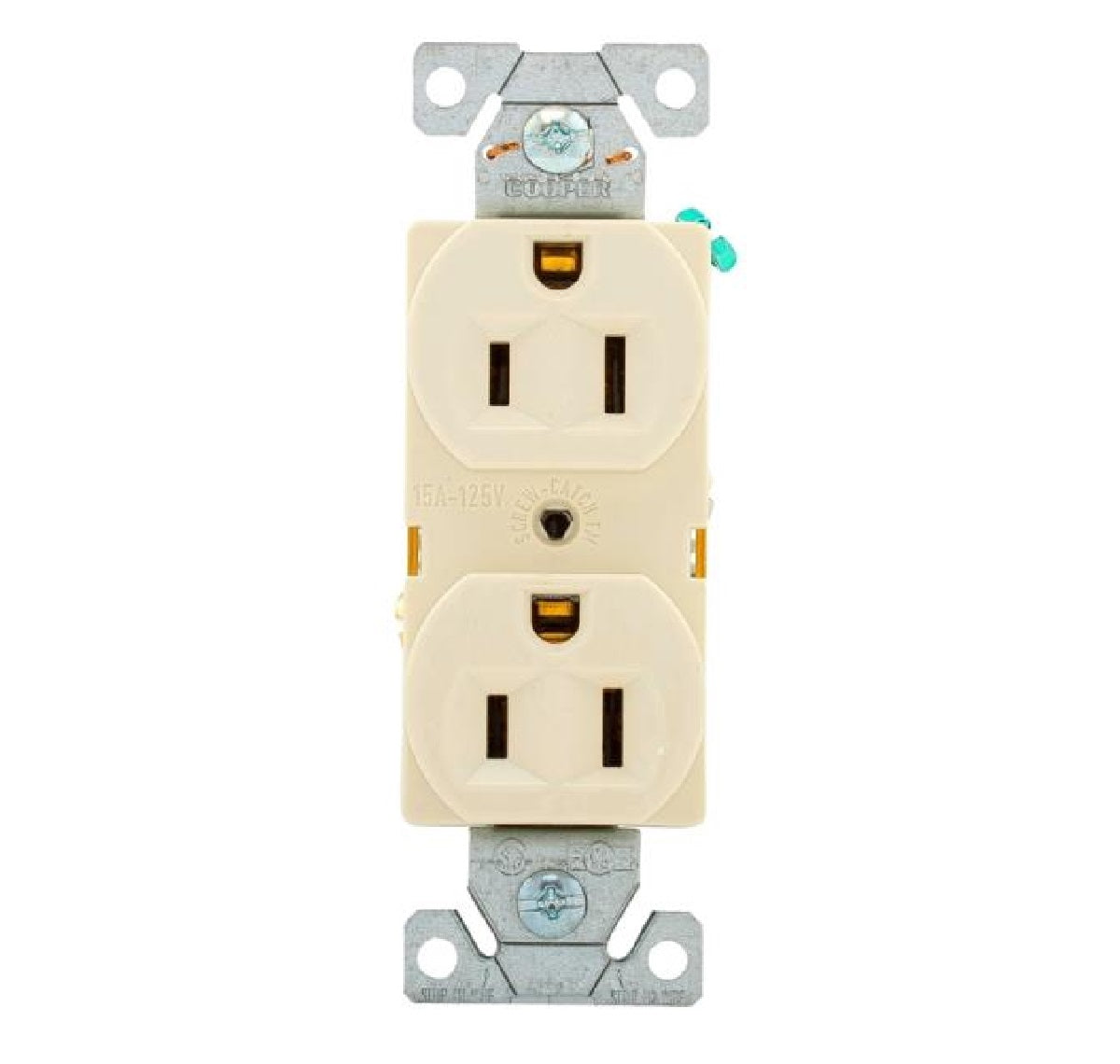

Cooper Wiring BR15LA Straight Blade Duplex Receptacle, 125 Volt
Item # 12112035Mfr # BR15LAUPC 032664583131
$3.45
Product Overview
Highlights:
- Galvanized steel, wrap-around yoke mounting strap for superior assembly security; extra length/width helps reach large panel cutouts for Code Compliance
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper used
- Screw-Catch feature on duplex devices speeds mounting of wallplates
- Tamper Resistant receptacles provide compliance with 2017 NEC® Article 406.12 that states that all 15A and 20A, 125V receptacles installed in dwelling units must be tamper resistant
Specifications
- Color
- Light Almond
- Amperage Rating
- 15 A
- Connection
- Screw
- Type
- Straight Blade
- Number of Poles
- 2
- Material
- Nylon Face, PVC Base
- Number Of Wires
- 3
- Nema Rating
- NEMA 5-15R
- Wire Size
- 14 - 10 AWG
- Voltage Rating
- 125 VAC
- Dimensions Overall
- L 4.2" x W 1.3" x D 0.88"
- Standards
- cULus Listed to UL498, File No E15058, CSA Certified to C22.2, No 42, File No 6914, class 6233-01, UL verified to Federal Spec. WC-596G and NOM certified
- Dielectric Strength
- 2000 V
- Temperature Rating
- -20 TO 60 deg C
- Special Features
- Commercial Grade, Back and Side Wire
- Brand
- Cooper Wiring
- Mfr number
- BR15LA
- Item number
- 12112035
- UPC
- 032664583131
