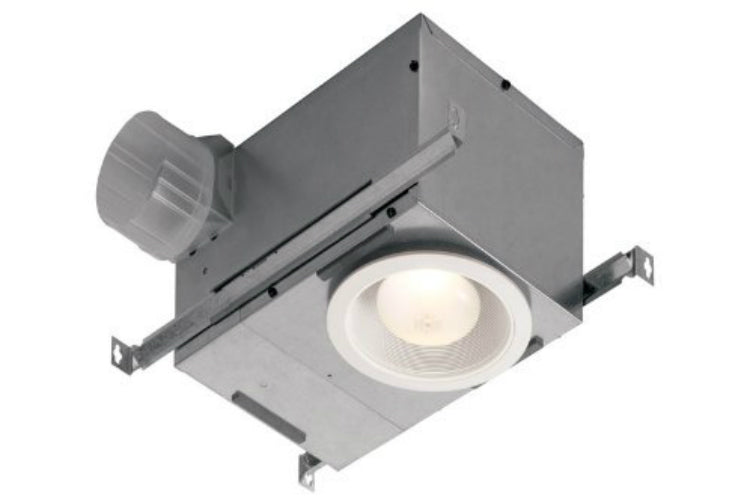

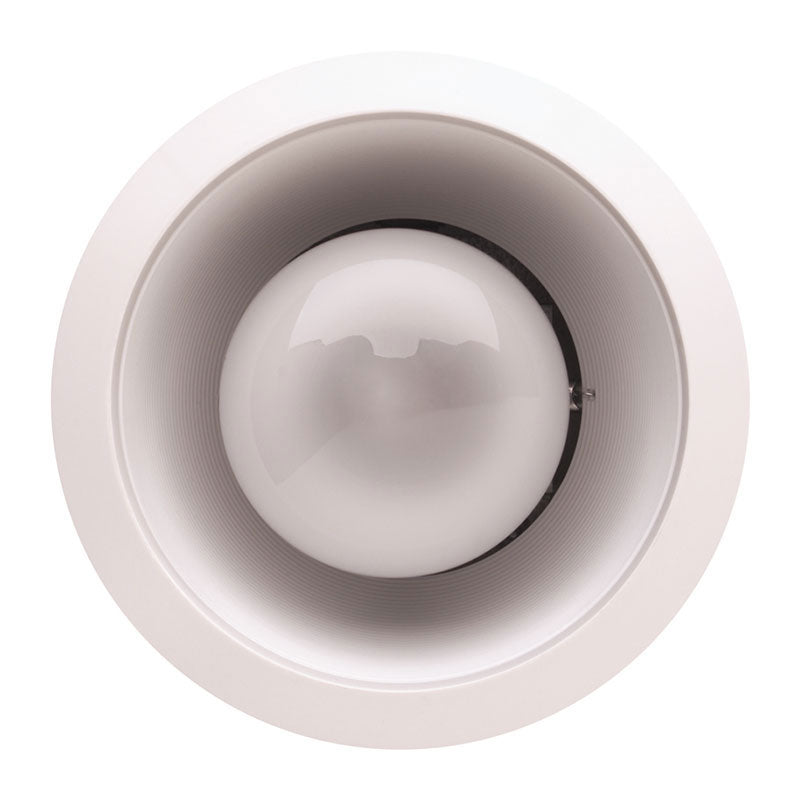

Broan 744 Recessed Bath Fan & Light, 70 CFM, 1.5 Sones

$158.00

Created with Sketch.
Shipping charges calculated at checkout.
1

Request a Bulk Quote

Thank you for your quote request. We will be in touch.

SKU: 12287553
MFG: 744

Description

Recessed lights are popular lighting solutions. But Broan took it a step further by incorporating powerful ventilation in the same design. Broan recessed fan lights disappear into the ceiling with other recessed lights, so they are practical decorating and air removal solutions for any room in the house.

  • High efficiency centrifugal fan
  • 70 CFM at 1.5 sones
  • Recommended Room Size (Sq. Ft.): 65
  • Trim matched to designs of major recessed light manufacturers
  • Put multiple units in larger rooms
  • Model 744 accepts a standard A19 base, 75 watt maximum bulb, not included. (R30, BR30, PAR30L, or PAR30LN)
  • UL Listed for use over bathtub or shower when connected to a GFCI protected branch circuit.
  • 6-7/8" high housing appropriate for new construction and 2" x 8" ceiling joists
  • 4" round duct connector
  • Optional wall control switches available
  • Type IC, sealed housing
  • Not for use over cooking surfaces Humidity.

Specifications:

  • CFM: 70
  • Recommended Room Size (Sq. Ft.): 65
  • Sones: 1.5
  • Light Bulb Wattage: 75
  • Recommended Light Bulb Type: R30 BR30
  • Light Bulb Quantity: 1
  • Room Side Installation: No
  • Duct Diameter: 4"
  • Housing Height: 6-7/8"
  • Housing Length: 8-1/4"
  • Housing Width: 12-3/4"
  • Grille Length: 7-3/8" Dia
  • Rated Amps: 1.2
  • Watts: 28.2
  • Warranty: 1 year limited
  • Lighting Type: Incandescent
  • Light Bulbs Included: No
  • Nightlight: No
  • Grille Width: 7-3/8" Dia
  • Minimum Construction Space Required: 2" x 8"
  • Motor Engineered for Continuous Operation: No
  • Radiation Damper Available: No
  • Voltage: 120
  • UL Listed: Yes
