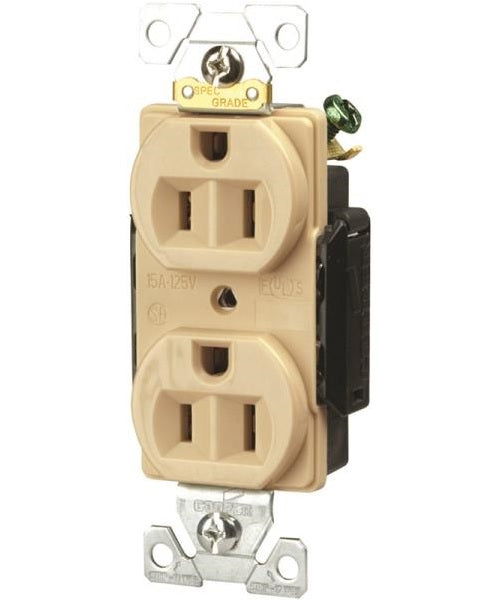

Arrow Hart AH5252V Straight Blade Duplex Receptacle, 125 Volt, 15 Amps
Arrow Hart AH5252V Straight Blade Duplex Receptacle, 125 Volt, 15 Amps
$10.97
SKU: 12138999
MFG: AH5252V
Description
Highlights:
- Color: Ivory
- 2 Pole/3 Wire - Grounding
- Industrial grade
- Back and side wired
- High impact and chemical-resistant nylon face
- Rigid glass reinforced nylon base
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure
- Long, broad mounting strap
- Meets all UL 498 requirements UL Listed
- Screw-catch feature speeds mounting of wall plates
- Combination slot/Phillips/Robertson terminal and mounting screws
- 5-leaf solid brass line contacts for lowest heat rise, smooth plug blade insertion and long term retention
Specifications:
- Type: Straight blade
- Numberof poles: 2
- Amperage rating: 15 A
- Voltage: 125 Volt
- Nema rating: 5-15R
- Overall depth: 1.35"
- Material: Nylon
- Temperature rating: -20 TO 90 degree C
- Standards: CSA Certified, UL Listed
Specifications
MFR:
AH5252V
SKU:
12138999
UPC:
032664735257
Brand:
Arrow Hart
Length:
6
Width:
4
Height:
8
