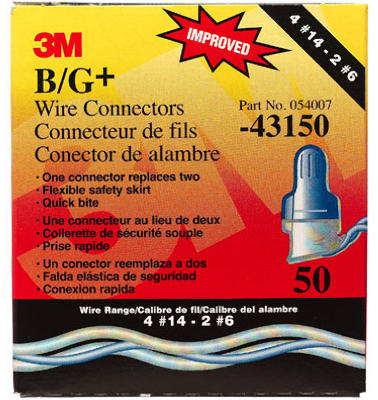

3M™ Performance Plus B/G+ Wire Connector, 50-Pack

3M™ Performance Plus B/G+ Wire Connector covers both the large blue & gray connectors. Use a 3M™ B/G+ wire connector to electrically connect two or more conductor ends in a pigtail application and insulate the connection. This simplifies selection of the right connector for a wide range of wiring jobs. There's also less inventory to manage, and a better chance you'll have the connector you need to do every job. Flexible wire connector. 8-14 American wire gauge. Flexible insulation. Corrosion resistant, resists vibration. works with copper wire.

• 50 Pack
• 4#14-2#6-3#8 AWG
• Covers both the large blue & gray connectors
• Flexible wire connector
• 8-14 American wire gauge
• Flexible insulation
• Corrosion resistant
• Resists vibration
• Works with copper wire
• Maximum Recommended Voltage Rating: 600 Volt
• Boxed.
• COPPER conductors only, No. 14 thru No. 6 sol. and/or str.
• COPPER conductors only, 2,5 mm2 thru 10,0 mm2 ridged (solid or stranded) and flexible.
• Spring steel, corrosion resistant coating
• Flame retardant, polypropylene and thermoplastic elastomer, color coded blue/gray
• 3M™ B/G+ wire connector is capable of connecting two or more wires in a pigtail application, in the wire range of No. 14 thru No. 6 AWG solid and/or stranded copper conductors. The connector shall be constructed of an active (live) spring. With a corrosion resistant coating. The connector shall be UL LISTED and CSA Certified as a pressure wire connector. The connector shall be voltage rated 600 volts maximum, building wire, 1000 volts maximum, signs, lighting fixtures (luminaries). The connector shall have a maximum operating temperature of 105 C (221 F).
• Strip wire insulation 7/8 (22,2 mm).
• Firmly grasp wires, making sure insulation ends are even and tightly bundled. (Wires may be twisted or untwisted.) Lead stranded wires slightly. Slip the connector over wire tips.
• Turn connector onto wires in clockwise direction until secure.
• To remove, turn connector counter-clockwise.
