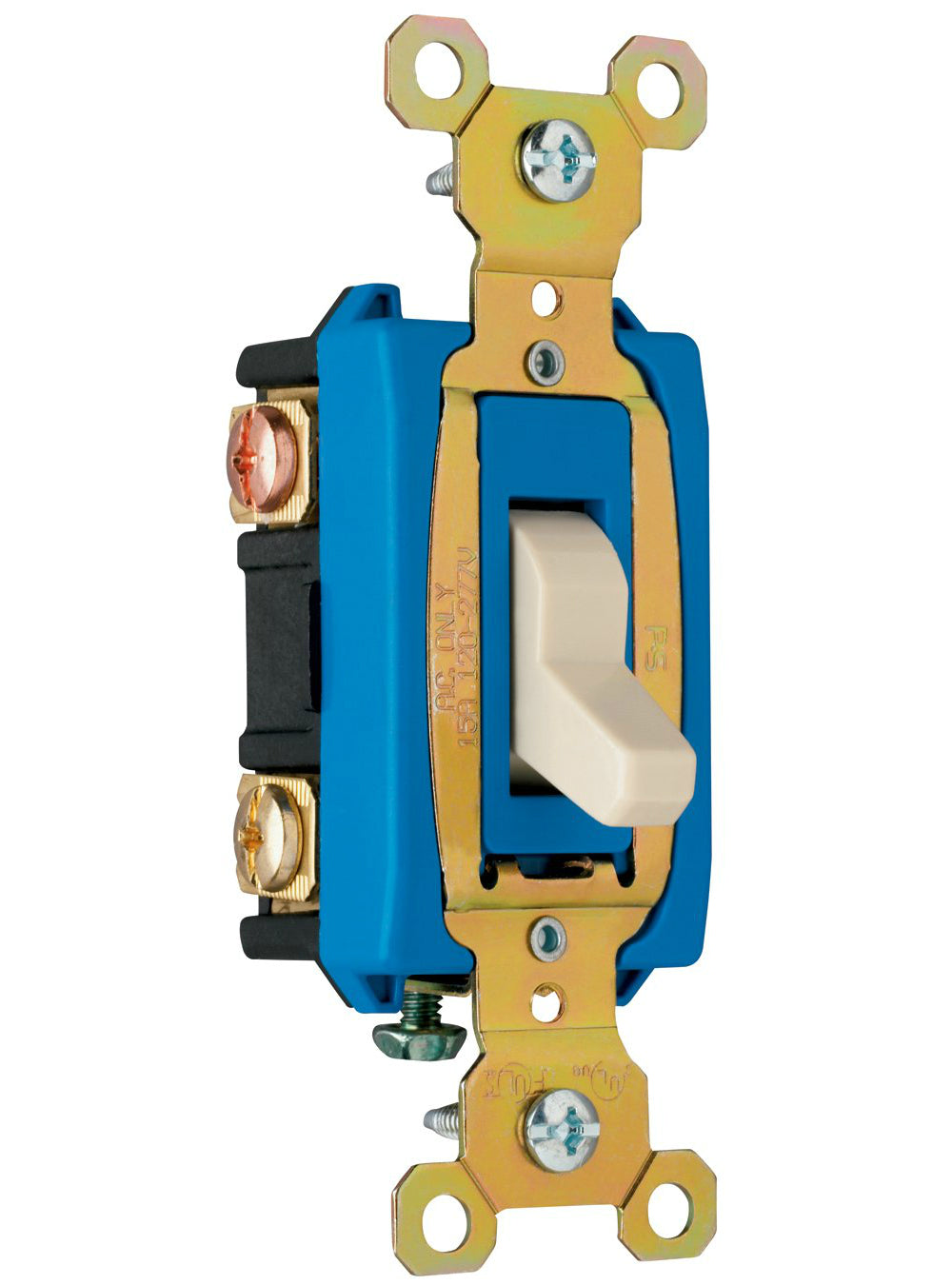

Legrand CSB15AC3ICC8 Back & Side Wire Commercial 3-Way Switch, 15A, Ivory

$12.15

Free shipping on order $35+
1

Request a Bulk Quote

Thank you for your quote request. We will be in touch.

SKU: 12353406
MFG: CSB15AC3ICC8

Description

Legrand Hard Use Specification Grade Construction Switch features one-piece brass alloy contact arm for reliable electrical performance. One-piece steel strap with integral ground is plated for corrosion resistance. High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse. Heavy-duty toggle bumpers for smooth and quiet operation. Back body made of glass-reinforced nylon. Locking support provides resistance to face and back body separation. Available with side wire or external screw-pressure-plate back and side wire models capable of accepting #14 - #10 AWG copper or copper-clad wire. Cam designed for fast make with positive break action to minimize arcing and prolong switch life. Oversized silver alloy contacts for longer dependable switch life. Tri-drive terminal and mounting screws.

  • Color: Ivory
  • One-piece brass alloy contact arm for reliable electrical performance.
  • One-piece steel strap with integral ground is plated for corrosion resistance.
  • High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse.
  • Heavy-duty toggle bumpers for smooth and quiet operation.
  • Back body made of glass-reinforced nylon.
  • Locking support provides resistance to face and back body separation.
  • Available with side wire or external screw-pressure-plate back and side wire models capable of accepting #14 - #10 AWG copper or copper-clad wire.
  • Cam designed for fast make with positive break action to minimize arcing and prolong switch life.
  • Oversized silver alloy contacts for longer dependable switch life.
  • Tri-drive terminal and mounting screws.

Specifications:

  • Duty: Hard Use
  • Number Of Poles: 3-way
  • Amps: 15A
  • Volts: 120/277VAC
  • Volts (AC): 120/277
  • Grade Type: Specification
  • RoHS: Yes
  • CSA Listing Info: C22.2 111
  • CSA Standard: Yes
  • Federal Spec: Yes
  • UL Listing No: 20
  • UL Standard: Yes

Specifications

MFR:
CSB15AC3ICC8
SKU:
12353406
UPC:
785007856712
Brand:
Legrand
Length:
2
Width:
2
Height:
5
