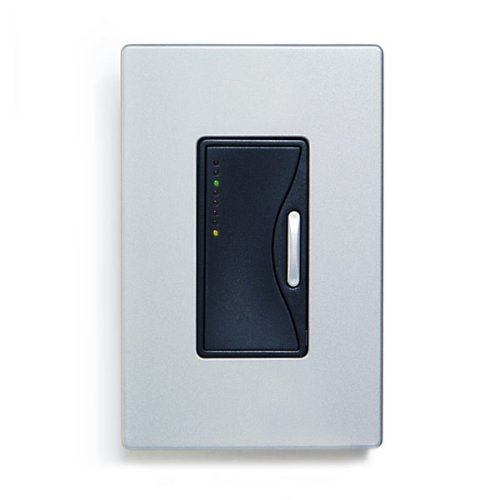

Cooper Wiring 9534SG Aspire Smart Master Dimmer with Preset, Silver Gr
Cooper Wiring 9534SG Aspire Smart Master Dimmer with Preset, Silver Granite
$53.83
SKU: 11955849
MFG: 9534SG
Description
The ultimate in controlling light, compatible with both incandescent and magnetic low-voltage lighting. Features such modes of operation as rapid and delayed fading, LED light-level display for presetting illumination levels, and master/remote units for multi-point control. cUL Listed , meets all UL 1472 requirements (file no. E47967); CSA 10016 (file no. 6241-01) as required; NOM Certified. Flammability rating: V2 per UL 94. Temperature rating of 0 degrees C to 35 degrees C. 600 watt maximum.
- Preset feature allows user to return to previous light setting when turning lights on
- Electro-mechanical push pad for on/off operation with separate dim/bright bar
- Push pad design provides minimal travel and crisp actuation
- LED light level display for presetting illumination levels and master/accessory units for multi-location control
- Replaces a standard switch and offers dimmer capabilities
- Digital circuitry provides aesthetically pleasing soft-on/fade-off that extends lamp life
- Radio frequency interference (RFI) filtering for radio, audio and video equipment
- Power failure memory
- Electrostatic discharge protection
- Compatible with any decorator wall plate
Specifications
- Series: 9534
- Type: Preset
- Voltage Rating: 120 VAC
- Wattage: 600
- Material: Polycarbonate/Aluminum Strap
- Finish: Gloss, Matte
- Frequency Rating: 60 Hz
- Number of Poles: 1
- Standards: CSA C22.2, cUL/UL 1472, NOM Certified
- Usage: For Residential Applications
- Terminal Type: Wire Leads
- Temperature Rating: 0 - 40 deg C
Specifications
MFR:
9534SG
SKU:
11955849
UPC:
032664646102
Brand:
Cooper Wiring
Length:
2
Width:
2
Height:
3
