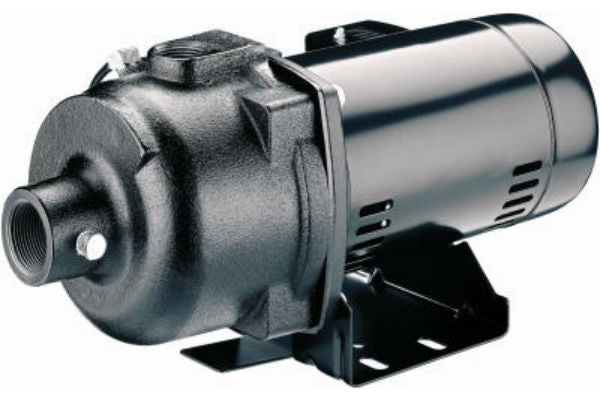

Master Plumber 123357 Cast-Iron Shallow Well Jet Pump, 1/2 HP, 115/230
Description
Master Plumber 1/2 HP cast iron shallow well jet pump is perfect for wells with depth to water of 25 feet or less. Includes a 30/50 pressure switch and heavy duty dual voltage motor preset to 230 volts. Maximum pumping capacities to 8.2 GPM. Pump housing is constructed of heavy duty cast iron. 1-1/4" suction port and 1" discharge port. Perfect for smaller homes or cabins where the well's depth-to-water is 25' of less.
- Body Construction: Cast Iron
- Horsepower: 1/2 HP
- Maximum Capacity: 8.2 GPM
- Max Lift: 25'
- Max Shut-Off Pressure: 77 PSI
- Pressure Switch Setting: 30/50
- Suction Size: 1-1/4" NPT
- Discharge Size: 1" NPT
- Amp Draw (full Load): 9.9 Amps On 115V / 4.0 Amps On 230V
- Voltage: 230V / 115V Ac
- Motor type capacitor start
- Myer design.
