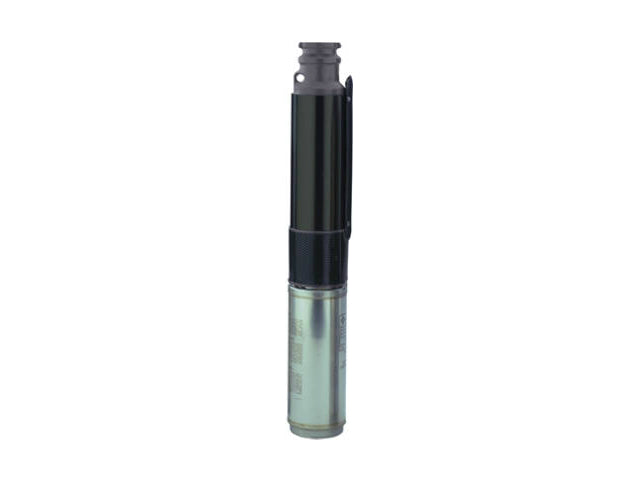

Flint & Walling 4H10G07-301 Submersible Well Pump, 3/4 HP, 4"
Description
Discharge head: stainless steel, 1" NPT, safety rope eyelet included. Check valve poppet: internal removable, with elastomer sealing ring. Top bearing: closed, sintered, lead-free sleeve bearing. Pump shell: heavy-wall stainless steel. Cable guard: stainless steel. Staging*: Noryl® impellers and diffusers; stainless steel floating bearing inserts and acetal diffuser plates. Pump shaft*: stainless steel hex shaft with one piece motor-to-shaft coupling. Motor bracket: NEMA standard, stainless steel with stainless steel suction screen.
- 3/4 HP
- 4", Submersible well pump
- 10 GPM
- 3 wire with ground
- 230 volts
- 14 stage & 1" NPT
- 170' @ 40 PSI = 10 GPM
- Water to 350'
- Discharge head: stainless steel, 1" NPT, safety rope eyelet included
- Check valve poppet: internal removable, with elastomer sealing ring
- Top bearing: closed, sintered, lead-free sleeve bearing
- Pump shell: heavy-wall stainless steel
- Cable guard: stainless steel
- Staging*: Noryl® impellers and diffusers; stainless steel floating bearing inserts and acetal diffuser plates
- Pump shaft*: stainless steel hex shaft with one piece motor-to-shaft coupling
- Motor bracket: NEMA standard, stainless steel with stainless steel suction screen.
