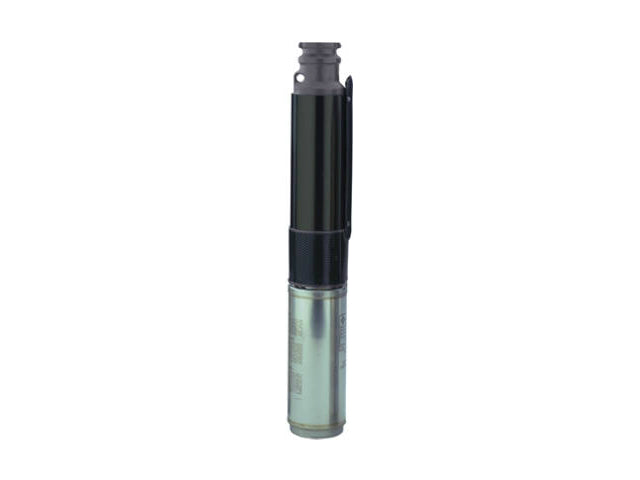

Flint & Walling 4H10G05-301 Submersible Well Pump, 1/2 HP, 4"
Flint & Walling 4H10G05-301 Submersible Well Pump, 1/2 HP, 4"
$340.45
SKU: 10701145
MFG: 4H10G05-301
Description
Discharge head: stainless steel, 1¼” NPT, safety rope eyelet included. Check valve poppet: internal removable, with elastomer sealing ring. Top bearing: closed, sintered, lead-free sleeve bearing. Pump shell: heavy-wall stainless steel. Cable guard: stainless steel. Staging*: Noryl® impellers and diffusers; stainless steel floating bearing inserts and acetal diffuser plates. Pump shaft*: stainless steel hex shaft with one piece motor-to-shaft coupling. Motor bracket: NEMA standard, stainless steel with stainless steel suction screen.
- 1/2 HP
- 4", submersible well pump
- 10 GPM
- 3 wire with ground
- 230 volts
- 8 stage & 1" NPT
- 80' @ 40 PSI = 10 GPM
- Water to 250'
- Discharge head: stainless steel, 1" NPT, safety rope eyelet included
- Check valve poppet: internal removable, with elastomer sealing ring
- Top bearing: closed, sintered, lead-free sleeve bearing
- Pump shell: heavy-wall stainless steel
- Cable guard: stainless steel
- Staging*: Noryl® impellers and diffusers; stainless steel floating bearing inserts and acetal diffuser plates
- Pump shaft*: stainless steel hex shaft with one piece motor-to-shaft coupling
- Motor bracket: NEMA standard, stainless steel with stainless steel suction screen.
Specifications
MFR:
4H10G05-301
SKU:
10701145
UPC:
054757002848
Brand:
Flint & Walling
Length:
5
Width:
5
Height:
31
