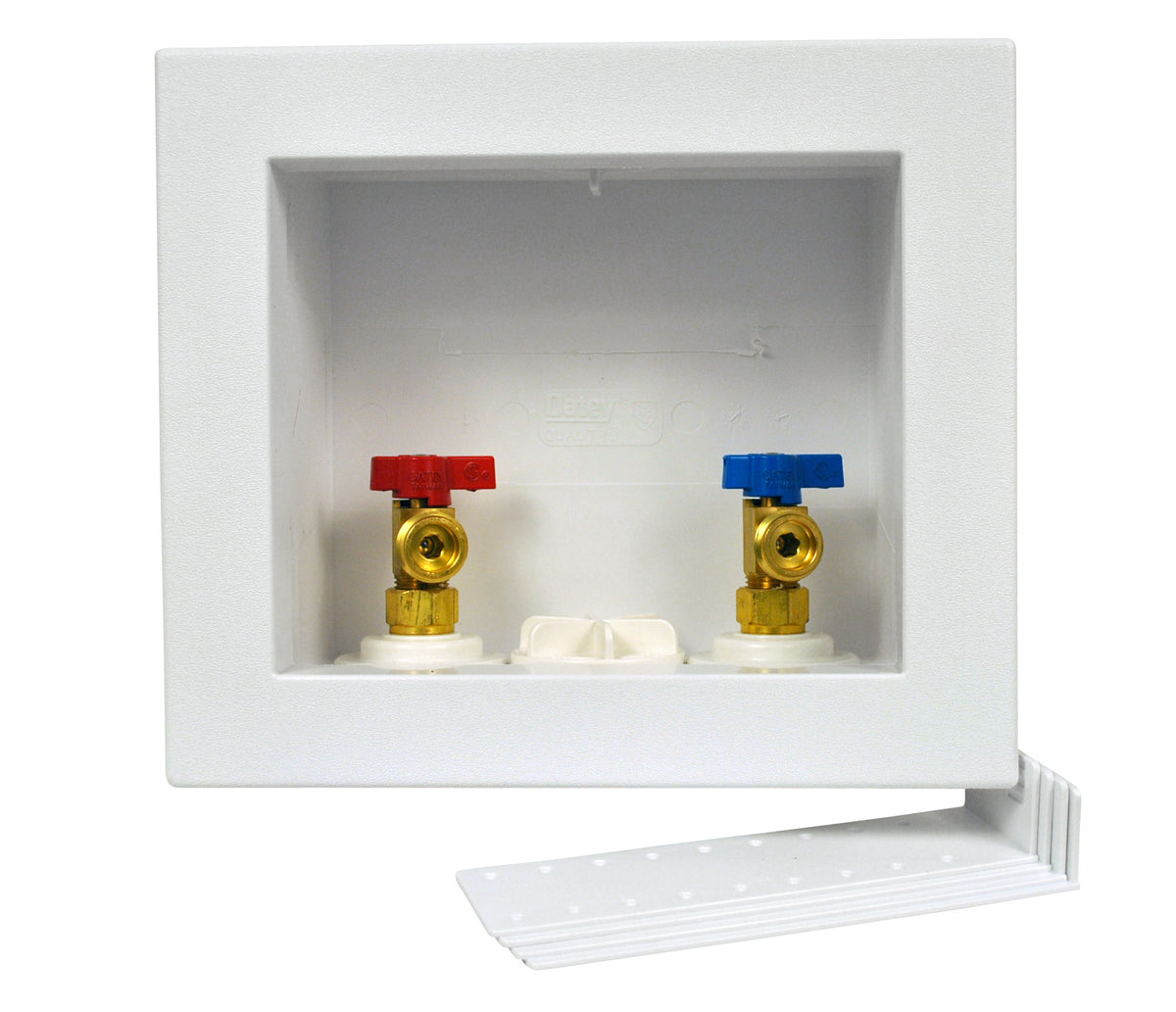

Oatey 38529 Quadtro 1/4 Turn Ball Valve Washing Machine Outlet Box, 1/
Description
Oatey Quadtro washing machine outlet boxes can be used in commercial or residential applications which require supply valves and waste drain recessed into the wall.
Highlights:
- 1/4 Turn brass ball valve.
- 1/2" copper sweat valve.
- Patented design allows for right, left or center drain and bottom or top mount valves.
- Lock and load valve mounting system for quick positioning.
- Single lever valve mounting hub locks into position in seconds.
- Unique easily installed and removed test cap that does not fall into drain.
- 2" drain opening fits PVC or ABS Schedule 40 DWV pipe.
- Easy to remove knockout, Patent Pending Hammer Valves.
- Snap-on Faceplate Frame accommodates up to 1" drywall.
- Box made of high impact polystyrene.
- Top or Bottom Valve Mount.
- 4 support brackets included for mounting.
- Box Dimensions: 8-3/4"W x 7-1/2"H x 3-5/8"D.
- Faceplate Dimensions: 11-3/4"W x 10-1/8"H.
