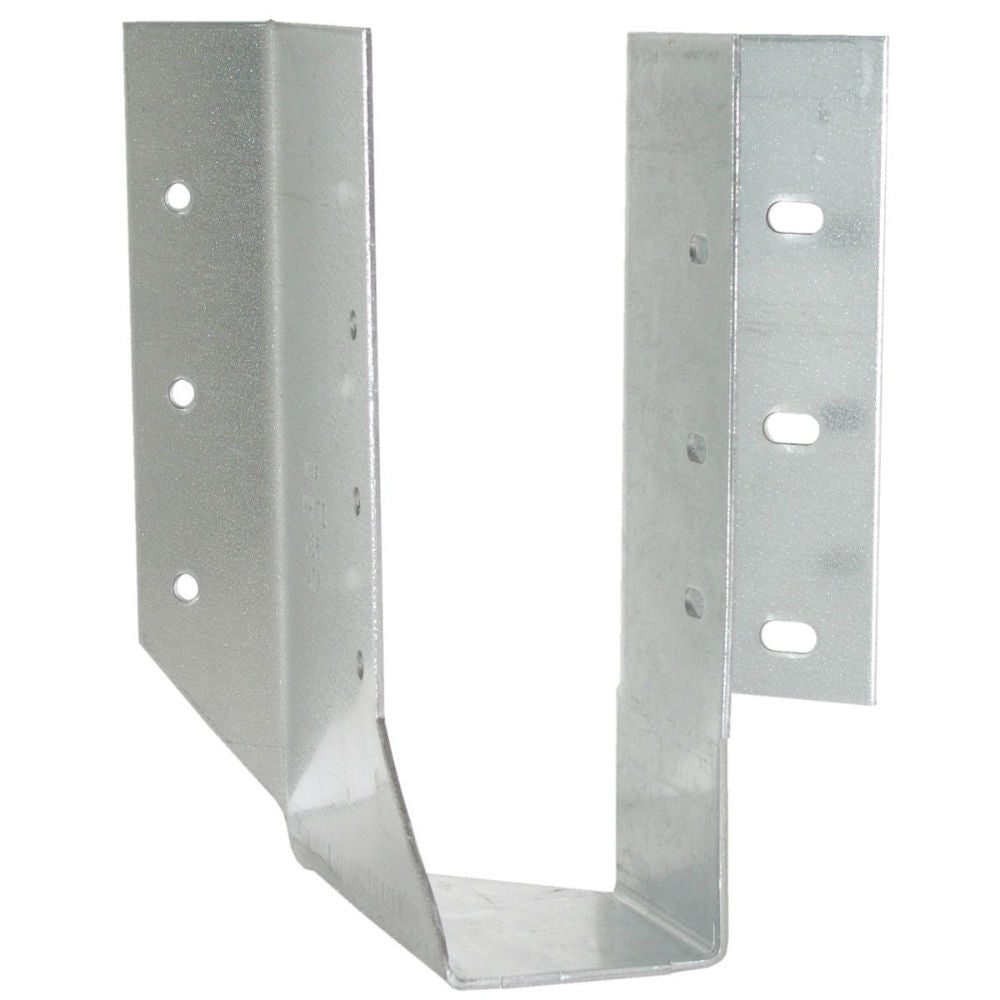

USP SKH26R-TZ Triple Zinc 45-Degree Skew Hanger, 2 x 6-8 Right
USP SKH26R-TZ Triple Zinc 45-Degree Skew Hanger, 2 x 6-8 Right
$18.60
SKU: 10509796
MFG: SKH26R-TZ
Description
Standard 45-Degree Skew Hanger allows for a 40 degree to 50 degree skew range, without hanger modification. Light duty face mount hanger that connects a 2X6 joist to a wood header at a 45 degree angle. The hangers listed are for standard sizes and will accommodate a 40 degree to 50 degree skew range. Most sizes do not require a miter cut for installation. For I-Joist installations, web stiffeners are required. For double I-Joist installations, web stiffeners between I-Joists are required. Right angle version (right angle as viewed when you face the installed connector). Heavy G185 galvanized coating for exterior applications. Recommended for use with treated lumber.
- Size: 2 x 6-8 right
- Skew 45 degree
- Triple zinc
- Standard 45 degree skew hanger allows for a 40-50 degree skew
- Range without hanger modification
- Manufactured of 16 gauge steel
- Heavy G185 galvanized coating for exterior applications
- Install using six 16d nails and six 10d x 1-1/2" nails.
Specifications
MFR:
SKH26R-TZ
SKU:
10509796
UPC:
081942113270
Brand:
Usp Structural Connectors
Length:
2
Width:
2
Height:
6
