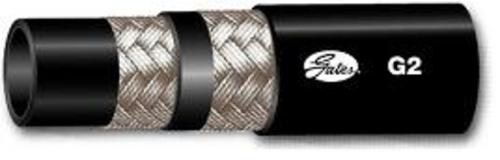

Gates 70609 16G2 2-Wire Braid Hydraulic Hose, 1"x165', 2400 psi
Gates 70609 16G2 2-Wire Braid Hydraulic Hose, 1"x165', 2400 psi
$1,470.15
SKU: 12186654
MFG: 70609
Description
Highlights:
- Recommended For: High-pressure hydraulic oil lines. Meets or exceeds the requirements of SAE 100R2, ISO1436 2SN R2 and EN 853 2SN
- Use: High Pressure
- Cover: Black, oil and abrasion resistant, thin synthetic rubber (Modified Nitrile - Type C2)
- Reinforcement: Two braids of high-tensile steel wire
- Tube: Black, oil resistant, synthetic rubber (Nitrile - Type C)
Specifications:
- Pipe Length: 165'
- Hose Inner Diameter: 1"
- Hose Outer Diameter: 1.48"
- Minimum Bend Radius: 12"
- Temperature Range: -40°F to +212°F (-40°C to +100°C). For water emulsions see Temperature Limits Table
- Maximum Working Pressure: 2400 psi
- Minimum Burst Pressure: 9600 psi
Meets These Agency Specifications:
- ABS - American Bureau of Shipping
- DNV - Det Norske Veritas (North Sea Floating Vessels), International
- DIN - Deutsch Industry Norm, International
- GL - Germanischer Lloyd's, International
- MSHA 2G - Mine Safety & Health Administration, USA
- AS - Australian Standard
- BV - Bureau Veritas (Marine Division), International
- FRAS - Fire Retardant Anti Static, Australia
- LR - Lloyd's Register, International
- USCG - United States Coast Guard
- SAE - Society of Automotive Engineers
- ISO - International Standards Organization
- EN - European Norm
WARNING: Cancer - www.P65Warnings.ca.gov
Specifications
MFR:
70609
SKU:
12186654
UPC:
072053227949
Brand:
Gates
Length:
22
Width:
22
Height:
21
