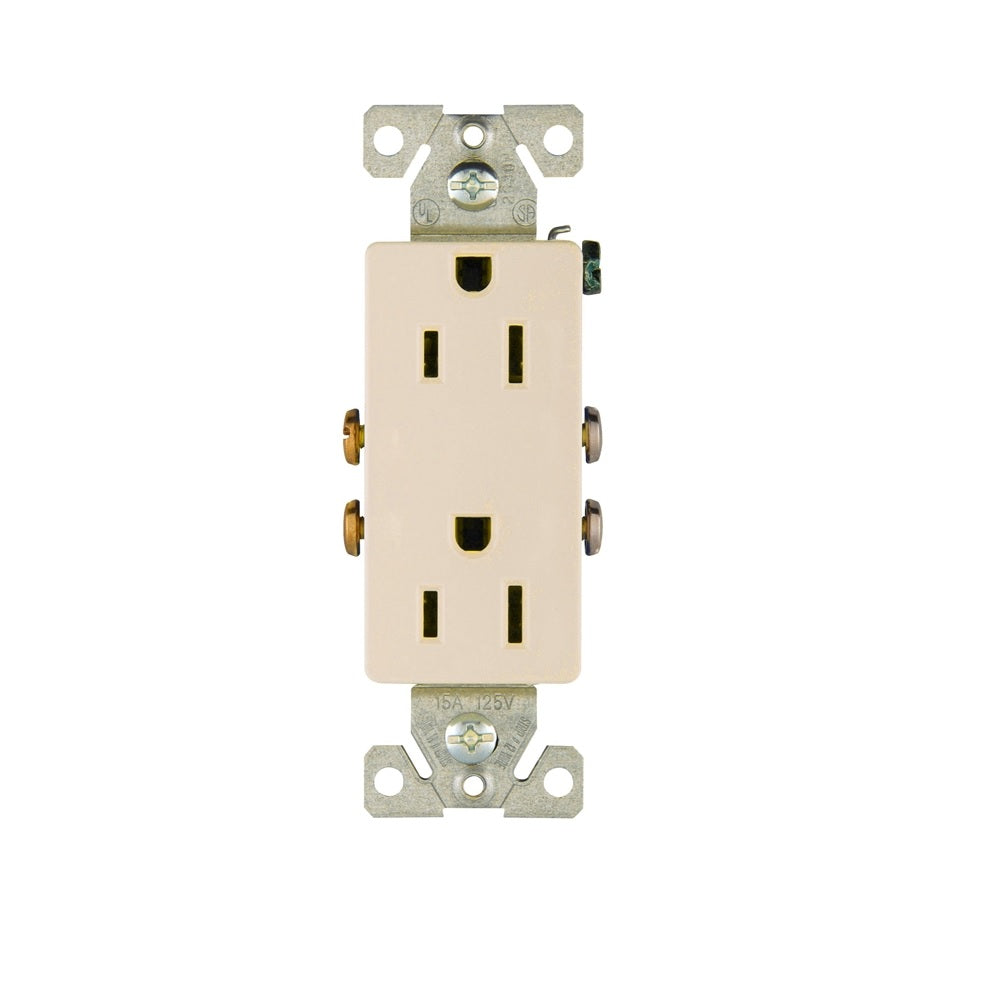

Eaton 1107LA Duplex Receptacle, 15 Amp, 120 Volt
Eaton 1107LA Duplex Receptacle, 15 Amp, 120 Volt
$8.18
SKU: 11817897
MFG: 1107LA
Description
Decorator receptacles feature longer, wider straps providing 40% more contact area to wall board. Virtually eliminates floating installations.
Highlights:
- Tamper-resistant receptacle provide compliance with 2017 NEC Article 406.12 that states that all 15 A and 20 A
- Longer, wider strap provides 40% more contact area to wallboard
- Patented built-in wire stripper for #12 and #14 AWG wire to speed installation
- Push-in terminals accept #14 AWG solid wire for quick installation
- Patented built-in wire looper for pre-looping
- High impact-resistant thermoplastic face and back body eliminates breakage
- Double-wipe ground contacts ensure long-term ground retention
- Easy access split circuit break-off tab
- Tri-combo screws accept Slotted, Phillips and Robertson head tools for installation flexibility
- Terminal screws backed out ready for wiring
Specifications:
- Body Material: PVC
- Color: Light Almond
- Contact Material: Brass
- Current Rating: 15 A
- Dimensions: 42 inch L x 130 inch W x 069 inch D
- Frequency Rating: 60 Hz
- Material: PVC
- Mounting Type: Wall
- N E M A Configuration: 5-15R
- Number of Poles: 2
- Number Of Wires: 3
- Operating Temperature: -20 to 60 deg C
- Strap Material: Steel
- Voltage Rating: 125 V
- Wire Size: 14 to 10 AWG
- Wiring Type: Back Side
Specifications
MFR:
1107LA
SKU:
11817897
UPC:
032664750861
Brand:
Eaton
Length:
8
Width:
5
Height:
2
Attachment:
