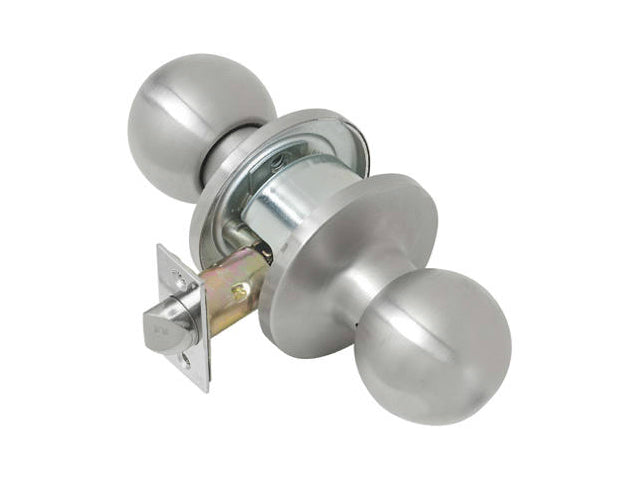

Tell CL100051 Light Commercial Tubular Door Passage Knob, St Steel, Grade 2

Tell CL100051 Light Commercial Tubular Door Passage Knob, St Steel, Grade 2

$27.76

Created with Sketch.
Shipping charges calculated at checkout.
1
Request a Bulk Quote

Thank you for your quote request. We will be in touch.
SKU: 10885279
MFG: CL100051

Description

Tubular grade 2, passage knob. US32D satin stainless steel finish. Complies with ANSI A156.2, series 4000, grade 2, 400,000 cycles. Tubular type construction, non-handed. For use on interior or exterior wood or metal doors. 1-3/8" to 1-3/4" thick, latch. 1" x 2-1/4", square corner, 3/4" housing diameter., 1/2" throw. Backset adjustable for 2-3/8" to 2-3/4". Strike, 1-1/8" x 2-3/4" x 3/32" t strike. Use 2-1/8" diameter hole for knob & 1" diameter hole for latch bolt. Fits standard 161 door prep. Schlage C keyway. UL listed, 3 hour fire rated.

  • Tubular grade 2, passage knob
  • US32D satin stainless steel finish
  • Complies with ANSI A156.2, series 4000, grade 2, 400,000 cycles
  • Tubular type construction, non-handed
  • For use on interior or exterior wood or metal doors
  • 1-3/8" to 1-3/4" thick, latch. 1" x 2-1/4", square corner, 3/4" housing diameter., 1/2" throw
  • Backset adjustable for 2-3/8" to 2-3/4"
  • Strike, 1-1/8" x 2-3/4" x 3/32" t strike
  • Use 2-1/8" diameter hole for knob & 1" diameter hole for latch bolt
  • Fits standard 161 door prep. Schlage C keyway
  • UL listed, 3 hour fire rated.

Specifications

MFR:
CL100051
SKU:
10885279
UPC:
737874297501
Brand:
Tell
Length:
12
Width:
4
Height:
9
