Prime Line E 2013 Vertical Keyway Patio Door Locksets, Steel
Description

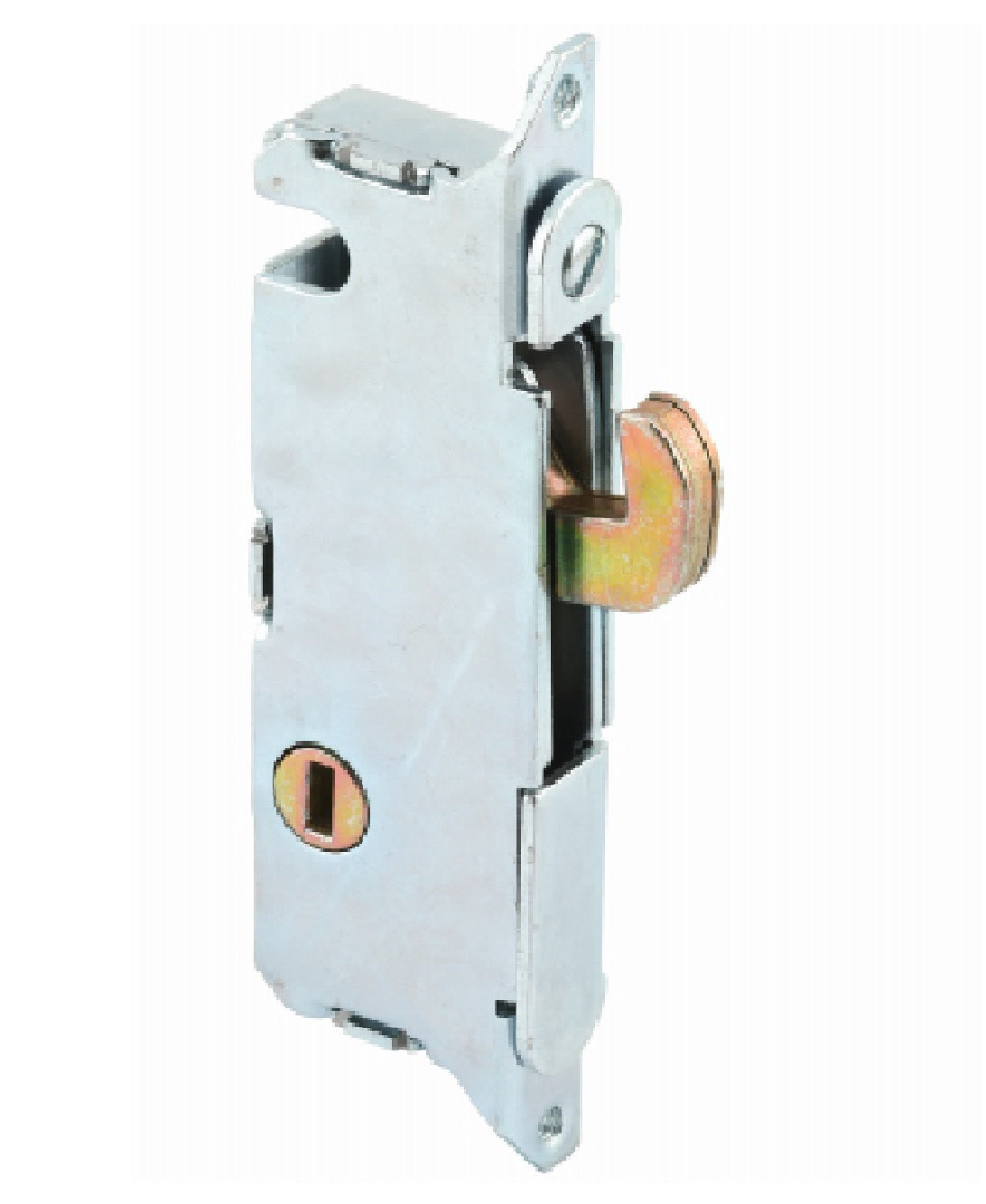

This mortise lock is constructed of steel components with rounded faceplate ends. It features an adjustable, spring-loaded hook latch projection and works with mortise style, surface-mounted patio door handle sets with vertical keyway positions when in the locked position.
Highlights:
- Material : Steel
- Used to replace damaged or missing mortise locks in patio sliding doors, often used by WandF and other manufacturers
- 1/2 inch wide body, 3-3/16 inch tall faceplate, 1-1/8 inch depth, 3-11/16 inch mounting hole centers
- Round end faceplate with spring-loaded, adjustable hook latch projection
- Installation of this lock should be mounted out of children's reach to help prevent them from opening a door themselves to enter or exit into dangerous areas
- Used on a variety of swing-in, hinged door types and can be mounted on, or beside the door casing
- This mortise lock works on older systems that use levers (Prime-Line parts E 2033, E 2034, E 2035, E 2037, E 2038 , and E 2066)
- Prime Line Vertical Keyway Patio Door Locksets Mortise installation Round end face Steel housing & adjustable hook, Square end face plate, Keyway in vertical position with hook projecting
