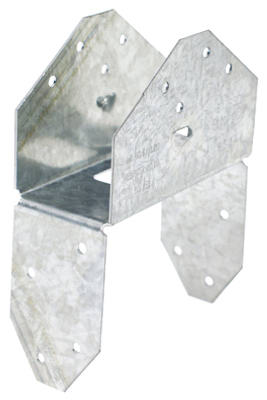

Simpson Strong-Tie HS24 Saddle Raft Tie
Description
The HS24 attaches the bottom chord of a truss or rafter at pitches from 0/12 to 4/12 to double 2 x 4 top plates. Double-shear nailing allows for higher lateral resistance. Installs with eight 8D x one 1/2" & two 8D slant nails to rafters & eight 8D nails to plates
- 18 Gauge
- Double shear nailing allows for higher lateral resistance
- Attaches to bottom chord of a truss or rafter at pitches from 0:12 to 4:12 to double 2 x 4 top plates
- Installs with eight 8D x one 1/2" & two 8D slant nails to rafters & eight 8D nails to plates
