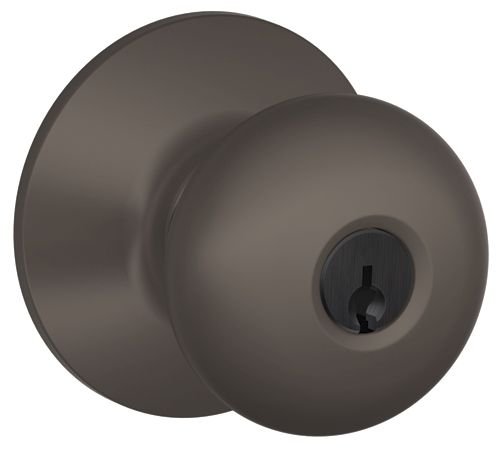

Schlage F51 PLY 613 Plymouth Entry Knob Locksets, K4, Oil Rubbed Bronz
Schlage F51 PLY 613 Plymouth Entry Knob Locksets, K4, Oil Rubbed Bronze
$37.68
SKU: 12131682
MFG: F51 PLY 613
Description
Highlights:
- Dual option universal
- Finish: Oil rubbed bronze
- Keying: K5
- For residential single and multi-family entrance doors
- Unlocked by key from outside when outer knob is locked by turnbutton on inside knob
- Emergency exit feature, no unlocking required for panic exit, inside knob always unlocked
- 1 piece knob for better security and appearance
- Solid brass trim and all metal parts
- Wrought brass exposed trim
- Pressure cast zinc tubular lock housing
- Key removable outside knob for easy cylinder replacement
- 3 piece assembly for easy installation
- All locksets have the same finish for both interior and exterior parts
- Door prep : 2-1/8" Crossbore; 7/8" or 1" Edge Bore; 1" x 2-1/4" Latch Face, 1/2" throw standard
- Door thickness: 1-3/8" to 1-3/4"
- Cylinder: 5-pin tumbler C keyway with nickel silver keys (2)
- Faceplate: 1" x 2-1/4"
- Strikes: Full lip, 1-5/8" x 2-1/4", 1-1/8" lip
- Bolt: 7/8" housing and 1" throw
- ANSI: A 156.2, 1996, Series 4000 Grade 2
- Dual option universal: Fits all doors, 2-3/4" or 2-3/8" backset; 1-1/8" square corner, 1/4" round corner, or circular drive-in preps
Specifications
MFR:
F51 PLY 613
SKU:
12131682
UPC:
043156420292
Brand:
Schlage
Length:
9
Width:
16
Height:
18
Attachment:
