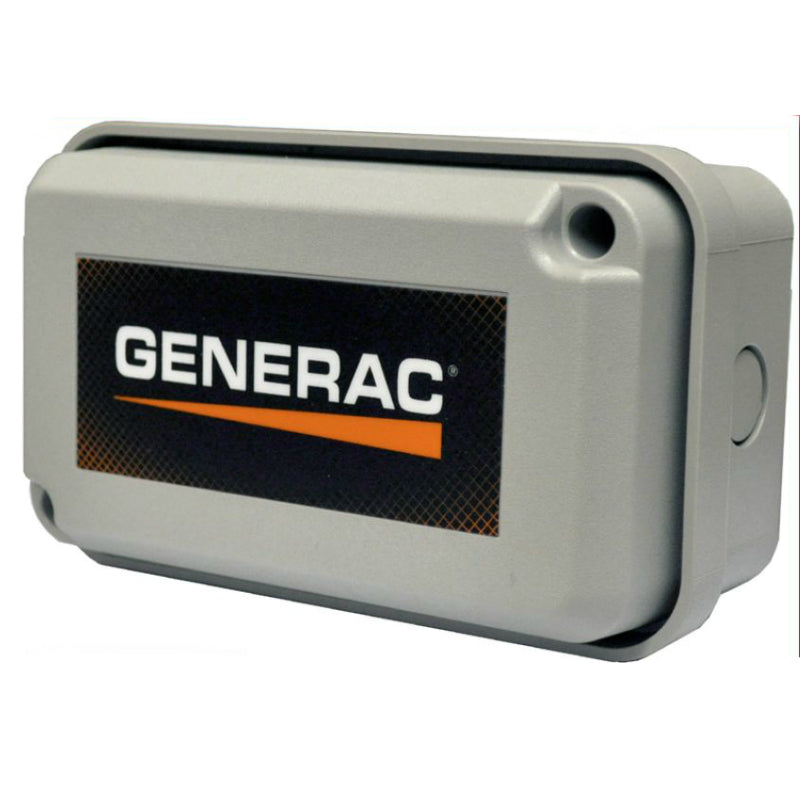

Generac® 6186 Digital Power Management Module, 50A
Generac® 6186 Digital Power Management Module, 50A
$40.20
SKU: 11499976
MFG: 6186
Description
The Digital Power Management system consists of two parts. The first is the PMM (Power Management Module) Starter Kit, which includes the easily field installed 24VAC transformer and the first 50 amp, 24VAC actuated PMM. The transformer must be installed in the NEMA 3R Smart Switches to enable the use of PMMs. The second is the PMM, a 50 amp, 24VAC actuated contactor housed in a NEMA 3R enclosure for indoor and outdoor installation applications. Through the use of the PMMs in conjunction with any of the 100-800 amp, single phase switches, household or business loads can be intelligently managed enabling the use of a smaller, more efficient generator system. Up to four PMMs can be used with a single switch.
- 50A
- For indoor and outdoor installation applications
- Power supply source: 240 VAC
- F/L inductive Amps: 40
- Through the use of the PMMs in conjunction with any of the 100-800 amp,
- Single phase switches, household or business loads can be intelligently managed enabling the use of a smaller, more efficient generator system
- Up to four PMMs can be used with a single switch.
Specifications
MFR:
6186
SKU:
11499976
UPC:
696471061864
Brand:
Generac
Length:
9
Width:
5
Height:
4
